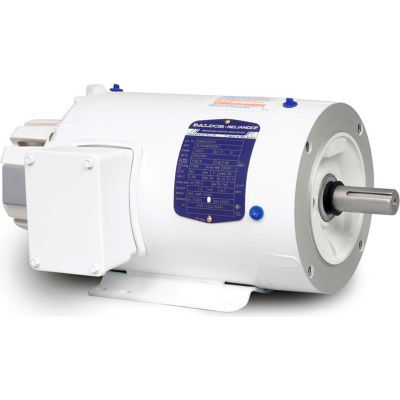

Baldor Washdown Motor IDWNM3609T, 3 Phase, 2 HP, 1725 RPM, 230/460 Volts, TENV, 182TC FR

Item #: WBB909476

Sold By: globalindustrial.com

Usually ships in 5 to 8 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $1,177.00
Product Information
Product Q&A
Baldor Washdown Motor IDWNM3609T, 3 Phase, 2 HP, 1725 RPM, 230/460 Volts, TENV, 182TC FR

Baldor's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electostatically applied epoxy finish, paint free with major components in 300 series stainless steel, and all stainless steel. Applications include food processing, packaging, pharmaceuticals, or applications where motors are regularly exposed to high pressure wash down.

Features
  • Motors include provisions for HS25 and HS35 encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meets NEMA MG 1, Part 31
Application(s)
  • Conveyors, Pumps and other equipment in food processing and other severe environments where motors are washed on a regular basis. For adjustable speed applications not requiring full torque at zero speed.

Documents are in PDF format

Product Specifications

  • HORSEPOWER2
  • ENCLOSURETENV
  • FRAME182TC
  • BRANDBaldor
  • RPM1725
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • OPPOSITE END BEARING6205
  • MANUFACTURERS PART NUMBERIDWNM3609T
  • C-DIMENSION INCHES17.77
  • DRIVE END BEARING SIZE6206
  • SPECIFICATION NUMBER36J565-0188G2
  • INSULATION CLASSH
  • TYPEWashdown Motor
  • SLIP-HERTZ1.89
  • MAXIMUM-RPM6000
  • MAGNETIZING-CURRENT3.4/1.7
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERIDWNM3609T
  • FL EFFICIENCY84
  • FL AMPS5.8/2.9
