BI-TORQ 2" 2-Way CPVC Ball Valve W/ NEMA 4 115VAC/4-20mA
See all 172 items in product family

BI-TORQ 2" 2-Way CPVC Ball Valve W/ NEMA 4 115VAC/4-20mA

Item #: WBB439057

Sold By: globalindustrial.com

Usually ships in 8 to 11 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $1,248.00
Product Information
Product Q&A

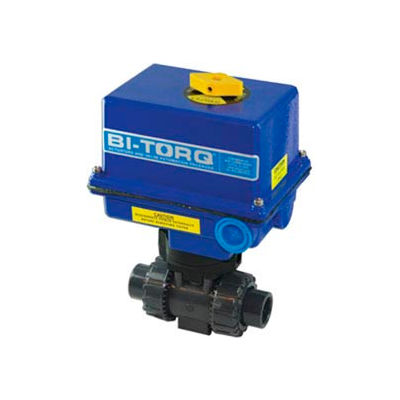

2" 2-Way CPVC Ball Valve W/ NEMA 4 115VAC/4-20mA

The BI-TORQ IV-3PS-20-200-E-A-4-VP series 2" ball valve comes complete with both threaded and socket end options. This version features a full port, true union CPVC ball valve with TFE seats and EPDM seals. (Options for both BUNA and Viton seals are available for media compatibility.) The valve has a pressure rating to 235 PSI at a temperature rating of +73°F. The CPVC body is suitable for chemical, industrial, irrigation, or pool and spa applications .This version comes complete with a BI-200-A-4-VP 115VAC electric actuator with a NEMA 4 powder coated enclosure and a 4-20mA positioner card for modulating service. A high-visibility dome and limit switches provide position indication. The actuator is rated from 0°F to +150°F with temperature controls available for extreme environments.

Product Specifications

    • LENGTH INCHES5.49
    • WIDTH INCHES2.8
    • HEIGHT INCHES5.55
    • BRANDBI-TORQ
    • PACKAGE QUANTITY1
    • BODY MATERIALBRONZE
    • VALVE TYPEBALL
    • # OF PORTS3-WAY
    • CONSTRUCTIONPVC, Aluminum
    • MANUFACTURER PART NUMBERIV-3PS-20-200-E-A-4-VP
    • VALVE SIZE2"
    • TYPE OF ACTUATIONMODULATING
    • ACTUATORELECTRIC
    • DIAMETER INCHES1
    • END CONNECTIONSSOCKET
    • ACTUATED OR MANUALACTUATED
