Powermatic 1610079 Model PJ882 2HP 1-Phase 8" Parallelogram Jointer
See all 15 items in product family

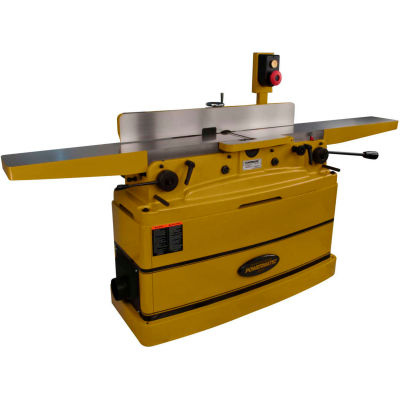

Powermatic 1610079 Model PJ882 2HP 1-Phase 8" Parallelogram Jointer

Item #: WBB57925

Sold By: globalindustrial.com

Usually ships in 2 to 5 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

List Price: $2,694.00 Save up to 17%
Price: $ 2244.99

with FREE shipping today! (within the contiguous US)

Product Information
Product Q&A
The 8 Parallelogram Jointer offers performance and value in a machine loaded with features. Each machine has an extra long 82" bed length for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of tough duty. The 1/8" depth limiter control knob gives you quick adjustment ability and safety. A quick twist of the knob will disable this feature. This jointer features a Powermatic controlled chip 3-knife cutterhead for a safe, smooth cut every time. Powerful 2HP or 3HP motors are totally enclosed in a heavily constructed steel stand providing plenty of power for the most demanding jobs.

Features:

  • Extra long 82 table for expanded work support
  • Parallelogram design helps maintain table parallelism and eases table raising and lowering
  • Handwheel with worm gear system for precise fence tilting (Patented)
  • 1/8 depth of cut limiter for fast table positioning
  • High-mount switch for operator convenience
  • No-mar fence insert protects table

Documents are in PDF format

Product Specifications

    • DUST PORT DIAMETER INCHES4
    • DUST COLLECTION MIN. CFM REQUIRED800
    • TABLE HEIGHT (IN.)31-5/16
    • MANUFACTURERS PART NUMBER1610079
    • STYLEHSS Knives
    • BRANDPowermatic
    • NUMBER OF KNIVES (HELICAL/STANDARD)3
    • CUTTERHEAD DIAMETER (IN.)3-1/16
    • CUTS PER MINUTE21000
    • CUTTERHEAD SPEED (RPM)7000
    • CUTTING CAPACITY (W" X D")8 x 1/2
    • FENCE TILTS (DEGREE)45
    • FENCE SIZE (L" X H")4-3/4 x 38-3/16
    • RABBETING CAPACITY (IN.)1/2
    • STANDARD KNIFE SIZE (L" X W" X T")8 x 11/16 x 1/8
    • MOTOR VOLTAGE230
    • MOTOR PHASE1
    • MOTOR HORSEPOWER2
    • MOTOR AMPS9
    • TABLE SIZE (L" X W")83 x 8
