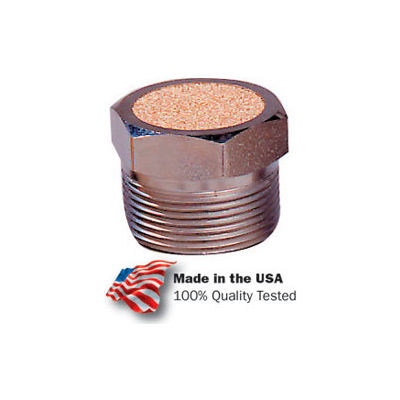

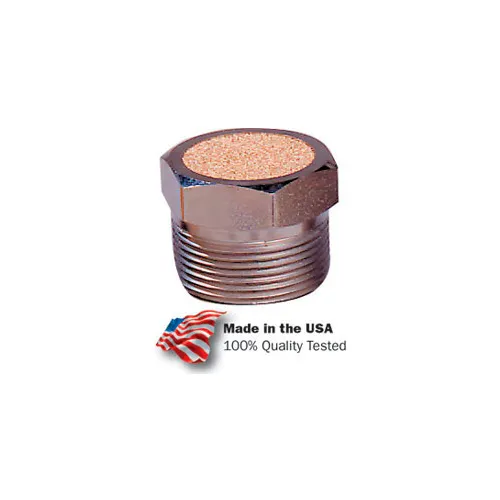

Arrow ASP1BV, Pneumatic Breather Vent, Sintered Bronze, 40 Micron, 1/8" NPT, 150 PSI
Arrow Pneumatics Sintered Bronze Breather Vent - These breather vents have many applications, including vacuum relief or pressure equalization on gear boxes, oil tanks or reservoirs. Common uses can be found on single acting cylinders to prevent dirt and foreign particles from entering ports open to the atmosphere. Units have a nickel plated steel insert. All have standard pipe thread fittings for quick assembly and removal for cleaning. The filter element within the standard breather vent is rated for 40 micron filtration and can also be obtained with 20 or 90 micron filtration on special order.
Features & Benefits:
Arrow Pneumatics Sintered Bronze Breather Vent - These breather vents have many applications, including vacuum relief or pressure equalization on gear boxes, oil tanks or reservoirs. Common uses can be found on single acting cylinders to prevent dirt and foreign particles from entering ports open to the atmosphere. Units have a nickel plated steel insert. All have standard pipe thread fittings for quick assembly and removal for cleaning. The filter element within the standard breather vent is rated for 40 micron filtration and can also be obtained with 20 or 90 micron filtration on special order.
Features & Benefits:
- 1/8" NPT
- Sintered bronze 40 micron breather vent
- 150 PSI Max
- Operating Temperature Range 35°F – 300°F
Weights & Dimensions
- NPT outlet 1/8 in
- Width 7/16 in
- Height 7/16 in
- Weight 0.01 lbs
Product Details
- Description Breather Vent
- Temperature Range 35 to 300 °F
- Type Breather Vent
- Brand Arrow Pneumatics
- PSI 150 psi
- Material Sintered Bronze
- Savings Everyday Low Price
- Manufacturers Part Number ASP1BV
- Color Family Gold
- Micron Rating 40 mic
