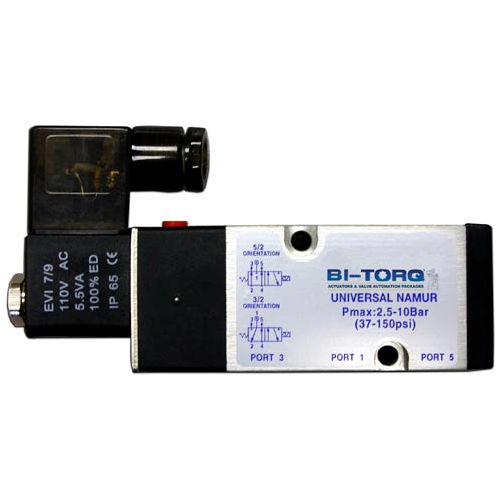

The QC-SOL-4-120 NEMA 4 solenoid is a NAMUR style for direct mount to NAMUR compliant pneumatic actuators. The same unit can be used as both a 3-way and 4-way solenoid for either spring return or double acting pneumatic actuators. DIN and conduit connectors are available.
Share
Spec Sheet
BI-TORQ 120 VAC NAMUR solenoid valve; NEMA 4
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$129.95
5
5
Free Shipping Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 5-1/4 in |
| Width | 1-5/8 in |
| Height | 2-3/8 in |
| Connection Size | 1/4 in |
Product Details
| Voltage | 120VAC V |
| Material | Aluminum |
| Manufacturers Part Number | QC-SOL-4-120 |
| Brand | Bi-Torq |
Compliance & Certifications
| NEMA Rating | 4 |
