3/4 Horsepower Upgrade for Omni Metalcraft Belt Conveyor

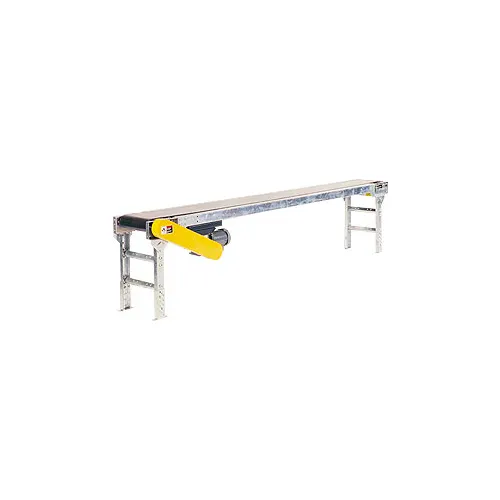

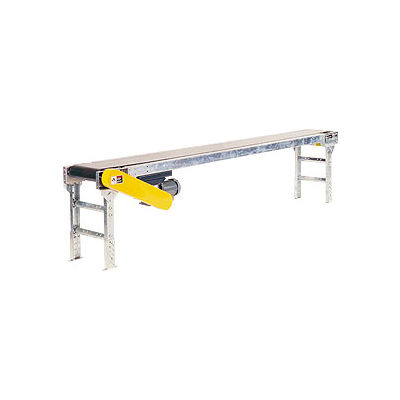

Entire Power Belt Conveyor Shown

3/4 Horsepower Upgrade for Omni Metalcraft Belt Conveyor

Item #: WB158921

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $91.95

Save $4.60 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Omni Metalcraft Powered 24"W x 10'L Belt Conveyor without Side Rails BHSE24-0-12-F60-0-0.5-4

Omni Metalcraft Powered 24"W x 10'L Belt Conveyor without Side Rails BHSE24-0-12-F60-0-0.5-4

Omni Metalcraft Powered 12"W x 10'L Belt Conveyor without Side Rails BHSE12-0-12-F60-0-0.5-4

Omni Metalcraft Powered 12"W x 10'L Belt Conveyor without Side Rails BHSE12-0-12-F60-0-0.5-4

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Global Industrial™ Power Strip, 16 Outlets, 15A, 72"L, 6' Cord

Global Industrial™ Power Strip, 16 Outlets, 15A, 72"L, 6' Cord

Hytrol® 5 Ft. - 18"W - 1.9" Dia. Galvanized Rollers - 15" Between Rails - 6" Roller Centers

Hytrol® 5 Ft. - 18"W - 1.9" Dia. Galvanized Rollers - 15" Between Rails - 6" Roller Centers

NestaFlex® 22624024-S Flexible Conveyor Steel Skate Wheel 226 Lb./Ft.

NestaFlex® 22624024-S Flexible Conveyor Steel Skate Wheel 226 Lb./Ft.

OPTIONAL 3/4 HP UPGRADE FOR Omni Metalcraft POWER BELT CONVEYOR

Totally enclosed 3/4 HP, 115/230V, 60 Hz single phase motor. Includes 8 ft. power cord and on/off switch for 115V use. Quality features include crowned and fully lagged 4" drive and tail pulleys with 1-3/16" dia. shafts. 60 FPM.

Allows for higher conveyor load capacities than with the standard 1/2 HP motor.

NOTE: This is a Horsepower upgrade to the standard 1/2 HP Motor. It is not a standalone Motor and must be purchased with a Conveyor that it will be applied to.

12"W Belt = 500 cap. lbs.
20-24"W Belt = 390 cap. lbs.

Load Capacity Lbs. Uniformly Distributed Over Length
  Horsepower     12"W Belt     20" - 24"W Belt
  1/2 (Standard) 250 160
  3/4 (Optional) 500 390
  1 (Optional) 740 640
  1-1/2 (Optional) 1230 1090
  2 (Optional) 1680 1580


Weights & Dimensions

  • Drive Pulley Diameter 4 in
  • Weight 6 lbs

Product Details

  • Type Accessory
  • Brand Omni Metalcraft
  • Voltage 115/230 V
  • Assembly Required Assembled
  • Horsepower 3/4 HP
  • Capacity 12"W Belt = 500 lbs; 20" & 24"W Belt = 390 lbs
  • Manufacturers Part Number 3/4 HP
