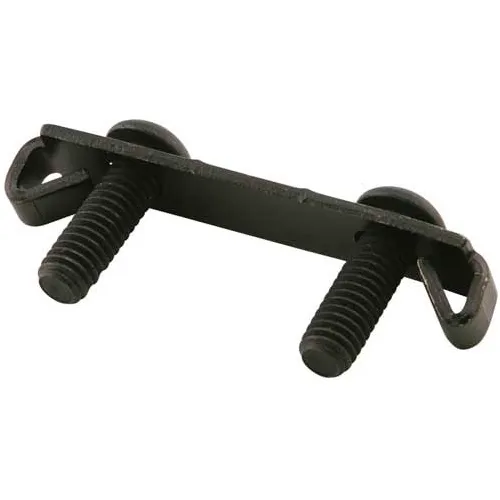

80/20 3344 Double End Fastener

The standard end fastener assembly is comprised of a button head socket cap screw and wing clip. The end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The winged tabs of the clip prevent the mating profile from rotating. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head. Additional Information: Wing clips are available separately (without the button head socket cap screw) for instances where you want to create your own custom ...

The single tab end fastener assembly is comprised of a button head socket cap screw and a single tab wing clip. The single tab end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The single winged tab is used for radius and angled profiles; the winged tab prevents the mating profile from rotating while the straight end is flush with the mounting profile. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.

The standard end fastener assembly is comprised of a button head socket cap screw and wing clip. The end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The winged tabs of the clip prevent the mating profile from rotating. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.

80/20 3100 Double Anchor Fastener, Short Assembly Features: One of 80/20's strongest fastening options Allows infinite position ing along a T-slotted profile Provides a vibration-proof, clean, flush connection where space restrictions apply Creates 90° connections where T-slots are in alignment Profile must have T-slots opposite each other Short assemblies mount across the 1.0" dimension for 10 Series and 1.5" dimension for 15 Series Long assemblies mount across the 2.0" dimension for 10 Series and 3.0" dimension for 15 Series

The wire mesh fastener is typically used with Quick Frame profiles to secure .500" x .500" mesh panels. It is made of gray nylon and fastens to a square tube with self-tapping or self-drilling screws.
