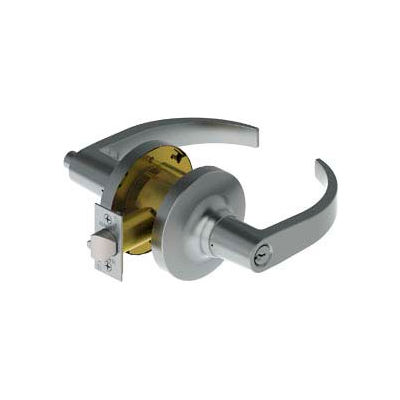

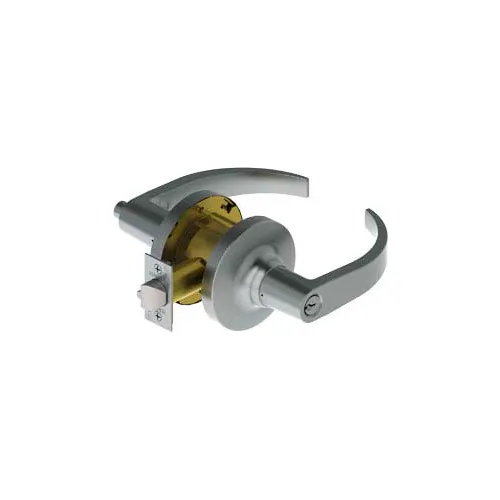

3453 Grade 1 Cylindrical Lock - Entry 2-3/4" Us26d Wtn Nc Asa Ic
Features
Features
- Lifetime warranty
- No exposed mounting screws
- Non-handed
- Conventional cylinder or Small Format Interchangeable Core housing available
- Standard Door Prep: 2-1/8 (54 mm) diameter (cross bore) Latch hole: 1 (25 mm) diameter (edge bore)
- Certifications: BHMA Certified ANSI A156.2 Series 4000 Grade 1, ADA Compliant ANSI A117.1 Accessibility Code (levers only), ANSI A250.13 Severe Windstorm Resistant Component, UL/cUL Listed for all functions up to 3 hours for A label doors UL10C/UBC 7-2 (1997) Positive Pressure Rated UL10B Neutral Pressure Rated
- Exposed Trim: Knobs: Wrought brass or stainless steel
- Levers: Cast zinc Rose: Wrought brass or stainless steel
- Rose Diameter: 3-17/32 (90 mm) levers; 3 (76 mm) knobs
- Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance, Free wheeling (levers only), Thru-bolt mounting (levers only)
- Keys: Two operating keys supplied per lock
- Cylinders/Cores: Brass 6-pin, keyed different - C Keyway, Drilled 6-pin, Keyed 5-pin - Standard,Other keying options, including keyed 6-pin, available from factory,Small Format Interchangeable Core housing availableSFIC uncombinated or combinated, brass 6- or 7-pin sold separately
- Door Thickness: Knobs: 1-3/8 - 1-3/4 (35 mm - 45 mm),Levers: 1-3/8 - 2 (35 mm - 51 mm)
- Backset: 2-3/4 (70 mm) - Standard, 2-3/8 (60 mm) - Optional, 3-3/4 (94 mm) - Optional, 5 (128 mm) - Optional, Square corner faceplates standard, round corner available, Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only, 3/4 (18 mm) latch available
- Strike: 3935 ASA 1-1/4 x 4-7/8 (32 mm x 124 mm) strike - Standard
- Functions: 10 Passage, 17 Dummy, 40 Privacy, 50 Office, 53 Entry, 70 Classroom, 73 Corridor (levers only), 80 Storeroom, 95 Intruder Classroom (levers only)
- Lever Options: Apollo knob; Archer, August, Withnell levers
- Options: Lead lined (levers only), Tactile Warning (levers only), Split finish, Additional latchbolts and strikes available, Intruder Classroom indicator available, specify IND (inside rose will have three indicator points for a guide reference for locking the door)
Product Details
- Type Entry
- Brand Hager Companies
- Description Grade 1 Cylindrical Lock
- Warranty Lifetime
- Finish Satin Chrome Plated
- Units 1
- Manufacturers Part Number 345302N26D000W0NA00C
Customer Review
Product Q & A
There are no questions for this product.

3453 Grade 1 Cylindrical Lock - Entry 2-3/4" Us26d Wtn Nc Asa Ic
$280.95
