Features <ul style="margin-top:0px; padding-top: 5px; padding-bottom: 5px;"><li>Lifetime warranty</li><li> No exposed mounting screws</li><li>Non-handed</li><li>Conventional cylinder or Small Format Interchangeable Core housing available</li><li>Standard Door Prep: 2-1/8 (54 mm) Diameter (Cross Bore), Latch Hole: 1 (25 mm) Diameter (Edge Bore)</li><li>Certifications: BHMA Certified ANSI A156.2 Series 4000 Grade 2, ANSI A250.13 Severe Windstorm Resistant Component, ADA Compliant ANSI A117.1 Accessibility Code (Levers Only), UL/cUL Listed for all functions up to 3 hours A label single doors, UL10C/UBC 7-2 (1997) Positive Pressure Rated, UL10B Neutral Pressure Rated</li><li>Exposed Trim: Knobs: Wrought Brass or Stainless Steel, Levers: Cast zinc Rose: Wrought brass or stainless steel</li><li>Rose Diameter: 3-11/32 (85 mm) levers; 3 (76 mm) knobs</li><li>Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance, Free wheeling (levers only), Removable thru-bolts</li><li>Notes: Failure to install thru-bolts and removable screw posts voids BHMA certification, UL Rating and Warranty</li><li>Keys: Two operating keys supplied per lock</li><li>Cylinders/Cores: Brass - Keyed Different - C Keyway, Drilled 6-pin, Keyed 5-pin - Standard, Other keying options, including keyed 6-pin, available from the factory, Small Format Interchangeable Core housing available, SFIC uncombinated or combinated, brass 6- or 7-pin sold separately</li><li>Door Thickness: Knobs: 1-3/8 - 1-3/4 (35 mm - 45 mm), Levers: 1-3/8 - 2 (35 mm - 51 mm)</li><li>Backset: 2-3/4 (70 mm) - Standard, 2-3/8 (60 mm) - Optional, 3-3/4 (94 mm) - Optional, 5 (128 mm) - Optional</li><li>Latchbolt: 1/2 (13 mm) Throw - Stainless Steel, 1-1/8 x2-1/4 (29 mm x 57 mm) Faceplate for 2-3/4 (70 mm) backset, 1 x2-1/4 (25 mm x 57 mm) Faceplate for 2-3/8 (60 mm) backset Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only, Square corner faceplate standard, round corner available</li><li>Strike: 3935 ASA 1-1/4 x 4-7/8 (32 mm x 124 mm) strike - Standard</li><li>Functions: 10 Passage, 17 Dummy, 25 Exit Only, 27 BTB Dummy (Levers only), 40 Privacy, 50 Office, 53 Entry, 70 Classroom, 73 Corridor (Levers Only), 79 Keyed Communicating, 80 Storeroom</li><li>Finishes: US3, US4, US10, US10B, US26, US26D (Levers Only), US3, US32D (Knobs Only)</li><li>Lever Options: Apollo knob; Archer, August, Withnell levers</li><li>Options: Lead Lined (Levers Only), Tactile Warning (Levers Only), Split Finish,Additional latchbolts and strikes available </li><li>Notes: Blank plate projection is 13/16 (21 mm) for Functions 25 and 79</li></ul>

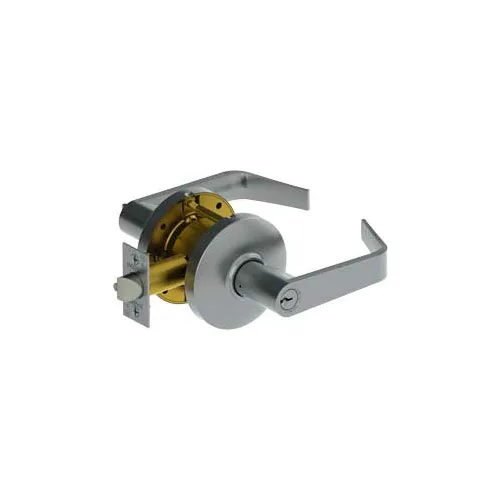

3553 Grade 2 Cylindrical Lock - Entry 2-3/4&quot; Us26d Wtn Nc Asa Ic

3553-grade-2-cylindrical-lock-entry-2-34-us26d-wtn-nc-asa-ic
