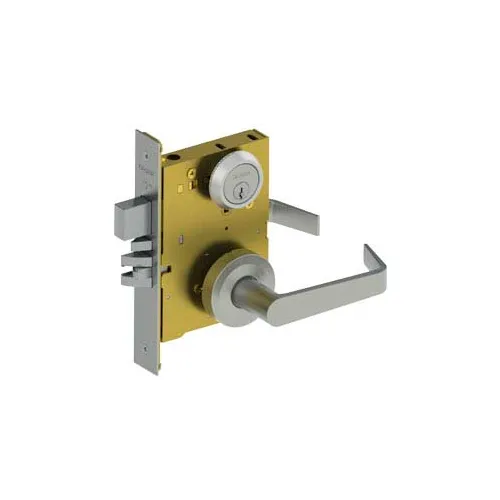

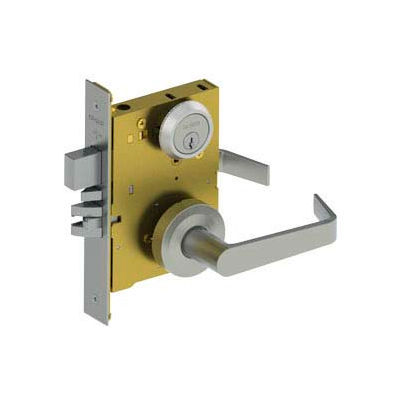

3853 Grade 1 Mortise Lock - Entry Sect Us26d Wtn Full6 Scc Kd
Features
Features
- Lifetime warranty
- Concealed thru-bolts
- Field reversible
- Standard mortise cylinder or Small Format Interchangeable Core housing available
- BHMA Certified Grade 1 Security with standard mortise cylinder
- Standard Door Prep: 3-5/8 (92 mm) Center of cylinder to spindle2-7/16 (62 mm) Center of thumbturn to spindle
- Certifications: BHMA Certified ANSI A156.13 Series 2000 Grade 1 Operational and Security, ADA Compliant ANSI A117.1 Accessibility CodeUL/cUL Listed for all functions up to 3 hours for A label doors, UL10C/UBC 7-2 (1997) Positive Pressure Rated, UL10B Neutral Pressure Rated, A250.13 Severe Windstorm Resistant (must specify)
- Exposed Trim: Cast Zinc - Standard, Forged Brass, Cast Stainless Steel - Optional
- Lock Case:4-5/16 x 6 x 1 (110 mm x 152 mm x 25 mm)
- Armor Front:1-1/4 x 8 x 7/32 (32 mm x 203 mm x 5 mm) - Standard, 1-1/16 x 8 x 7/32 (27 mm x 203 mm x 5 mm) - Optional
- Rose Diameter: 2-7/16 (62 mm)Keys: Two operating keys supplied per lock
- Cylinders/Cores: Brass - Keyed Different - C Keyway, Drilled 6-pin, keyed 5-pin - Standard, Other keying options, including keyed 6-pin, available from factory, Small Format Interchangeable Core housing available, SFIC uncombinated or combinated, brass 6- or 7-pin sold separately, Schlage L Cam - Standard
- Door Thickness: 1-3/8 - 2-1/2 (35 mm - 64 mm) - Steel Door, 1-3/4 - 2-1/2 (45 mm - 64 mm) - Wood Door, Must specify door thickness if greater than 1-3/4 (45 mm)
- Backset: 2-3/4 (70 mm) Only
- Latchbolt: 3/4 (19 mm) Throw with anti-friction tongue, all Stainless Steel
- Deadbolt: 1 (25 mm) Throw - Stainless Steel
- Strike: 3985 1-1/4 x 4-7/8 (32 mm x 124 mm), 1-3/16 (30 mm) Lip - Standard
- Fasteners: Thru-bolted trim concealed under rose
- Functions: 10 Passage, 17 Dummy, 27 Double Dummy, 40 Privacy, 44 Privacy with Cointurn, 50 Office, 53 Entry, 56 Corridor, 57 Classroom Security, 70 Classroom, 80 Storeroom, 81 Storeroom with Deadbolt, 82 Institution, 96 Privacy with Indicator
- Lever Options: Archer, August, William, Withnell levers
- Options: Tactile Warning, Lead lining, Split finish
- Finishes: US3, US4, US10, US10B, US26, US26D, US32D (for a true US32D, specify stainless steel levers), US3, US4, US10, US10B and US26 subject to extended lead time
- Notes: Self-adjusting case for beveled doors, Stopworks are incorporated in thumbturn. Breakable spindles prevent the lock from unlocking or being damaged. Non-handed, Stainless Steel, deadlocking bar
Product Details
- Type Entry
- Brand Hager Companies
- Description Mortise Sectional
- Warranty Lifetime
- Finish Satin Chrome Plated
- Units 1
- Manufacturers Part Number 3853S26D000WACD
