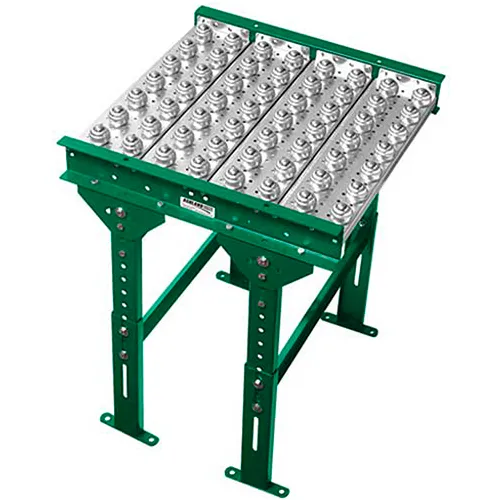

Ashland 10"W Ball Transfer Conveyor Table, 4'L, 3" Ball Center

The Model BTIT is a modular ball transfer table assembly constructed of 3-1/2" 11 ga. painted steel channel frames and 12 ga. galvanized steel inserts. Standard ball transfers are zinc plated carbon steel with a 75 lb. capacity per ball unit. Each table includes butt plate couplers.

Use when products are required to be manually rotated or correctly positioned. Ideal for workstations that require quick, easy handling of a product. Also use when more than 2 conveyor lines converge and packages must be transferred from one line to another. Compatible with 1.9" diameter roller conveyors. 1" diameter stud mount ball casters are set in 1-1/2"W x 3-1/2"H x 10 gauge galvanized steel frame. 65 lb. capacity per ball. How To Order: 1. Determine the ball table size required. Overall width is determined by adding the Between Frame Width and two 1-1/2" frame sides. 2. Determine ...

Ashland Conveyor 3' Ball Transfer Conveyor Table with 4" Center - 75 Lb. Cap. Ball transfer units are used where product must change direction or at an intersection of two conveyors. Table assemblies are designed to match-up with 1.9" diameter roller conveyor frames. Ball capacity of 75 lbs. each. Need a customized system or solution? Please reach out to your Global Industrial sales representative and they can get you set up with a custom quote for your conveyor needs.

The ball transfer table is used when products are required to be manually rotated or correctly positioned, such as a work station or other similar operation that requires quick, easy handling of the product. Ball Transfer Table is also used when more than two conveyor lines converge and packages must be transferred from one line to another. This product is non-cancelable and non-returnable. Need a customized system or solution? Please reach out to your Global Industrial sales representative and they can get you set up with a custom quote for your conveyor needs.

✓ Improves efficiency and productivity ✓ 10-gauge steel frame with 1" diameter steel balls set 1/4" high ✓ Rotates products for quick positioning or inspection Easily rotate or move packages, products, crates, and more with this Global Industrial™ Ball Transfer Table. Built for durability, it has a 10-gauge steel frame, 1" diameter steel balls, and 3" ball centers. Ideal for use at packaging and assembly stations, this table improves efficiency by quickly & easily moving stock & boxes from one place to another, while reducing wear and tear on equipment. ...
