80/20 4119 2 Hole Inside Corner Bracket

The right angle universal dynamic pivot assembly with dual "L" arms is typically used to create either a perpendicular or parallel dynamic pivot with full axial motion ranging from 0-90 degrees. The assembly includes one universal dynamic right angle pivot nub and two "L" dynamic pivot arms. It has permanently lubricated bronze bushings that act as high-strength pivot points and nylon thrust washers that protect the pivot arms. The hardware to connect the nub to the profile, the nub to the arms, and the arms to the profile are all included.

The standard universal dynamic pivot assembly with straight and "L" arm is typically used to create either a perpendicular or parallel dynamic pivot with full axial motion ranging from 0-180 degrees. The assembly includes one universal dynamic pivot nub, one standard straight dynamic pivot arm, and one "L" dynamic pivot arm. It has permanently lubricated bronze bushings that act as high-strength pivot points and nylon thrust washers that protect the pivot arms. The hardware to connect the nub to the profile, the nub to the arms, and the arms to the profile are all included.

The WF-LARGE is a metal bracket used to secure six-inch casters on Flexpipe structures. Mostly used to attach W-6PSB and W-6PF casters, it is installed as a pair with two M8-45B and two M8-N nuts. However, you can use this bracket to reinforce two parallel pipes as an alternative to the HJ-13. It would be a good choice for pipes that need to be spaced further apart, as you can cover an area of 5 inches.

The AI-CENTER is a metal anchor joint that improves the supporting capacity of a surface. We use this product with the AI-CORNER and as an alternative or a complement to the AI-SUPPORT to create more contact points with an embedded working surface. The AI-CENTER's role is to be a perfect anchor for large surfaces that would have the tendency to bend under heavy loads, it is a stronger solution to the AI-SUPPORT. Unlike the HJ-MS and HJ-DS, the AI-CENTER is not designed to hold containers like boxes and bins because of its upper, rounded part. This product is intended to support surfaces.

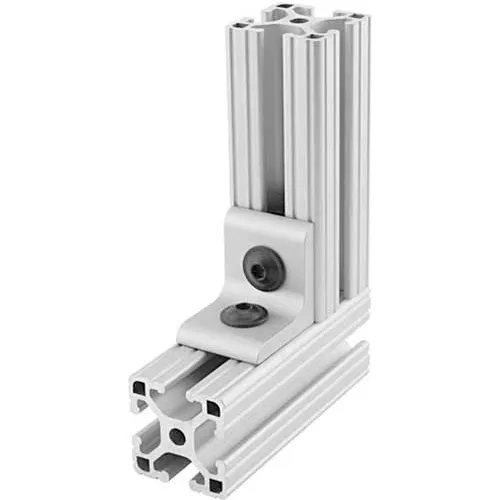

The 2 hole - gusseted inside corner bracket is a strong, external fastening method that creates a 90 degree connection. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The shape of the gusset provides extra material, strengthening the connection. It is a fastening method that can be repositioned and reused.
