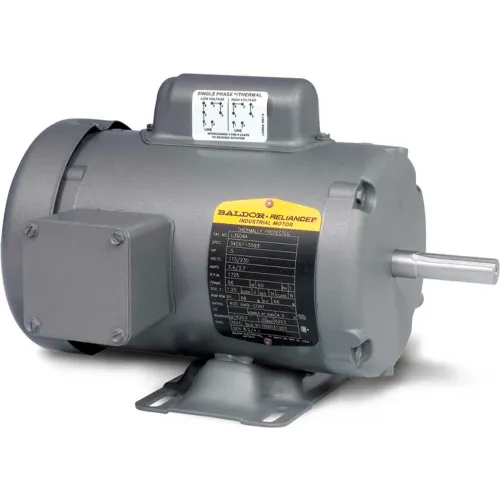

Baldor-Reliance 50 Hertz Motor, L3509-50, 1 PH, 1 HP, 2850 IP44 RPM, 110/220 Volts, TEFC, 56 Frame

Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox. Features Metric Flange or C-Face per IEC Standards Bolt on non-metric base Class F insulation Tach adaptable except type 135S 20:1 constant torque speed range Type 135S and 3300P motors are TENV, all others are TEFC Application(s) SCR Drive Motors for replacement on machinery requiring ...

Some general purpose applications require a motor that runs on 200 volt power. These 200 volt motors are stocked from 1 Hp to 50 Hp in TEFC, and 1 Hp to 100 Hp in ODP. Also available is an extensive line of 575 volt motors. The 575 volt motors are available in general purpose TEFC and ODP, Washdown, Severe Duty, IEEE-841, Explosion Proof, and Close-Coupled pump designs, in a variety of mounting configurations. Features Heavy gauge steel and cast iron frames Ball bearings ISR® (Inverter Spike Resistant®) copper windings Low-loss electrical grade lamination steel Three year warranty ...

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants. Features Super-E premium efficient motor 1.15 Service Factor Corrosion resistant epoxy finish Regreasable ball bearings Oversized rotatable cast iron conduit box Forsheda® shaft seal ...

Some general purpose applications require a motor that runs on 208-230/460 volt power. These motors range from 1 Hp to 50 Hp in TEFC. Also available is an extensive line of 575 volt motors. The 575 volt motors are available in general purpose TEFC and ODP, Washdown, Severe Duty, IEEE-841, Explosion Proof, and Close-Coupled pump designs, in a variety of mounting configurations. Features Heavy gauge steel and cast iron frames Ball bearings ISR® (Inverter Spike Resistant®) copper windings Low-loss electrical grade lamination steel Three year Warranty Application(s) Typical applications ...

Some general purpose applications require a motor that runs on 208-230 volt power. These motors range from 1 Hp to 50 Hp in TEFC. Also available is an extensive line of 575 volt motors. The 575 volt motors are available in general purpose TEFC and ODP, Washdown, Severe Duty, IEEE-841, Explosion Proof, and Close-Coupled pump designs, in a variety of mounting configurations. Features Heavy gauge steel and cast iron frames Ball bearings ISR® (Inverter Spike Resistant®) copper windings Low-loss electrical grade lamination steel Three year Warranty Application(s) Typical applications include ...
