AIMS Power 5000 Watt 36 Volt Power Inverter, PWRINV500036W

AIMS Power 5000 Watt 36 Volt Power Inverter, PWRINV500036W

Item #: WBB1789563

Not Yet Rated

Free Shipping

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $678.00

$113.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

AIMS Power 2500 Watt 24 Volt Power Inverter, PWRINV250024W

AIMS Power 2500 Watt 24 Volt Power Inverter, PWRINV250024W

Free Shipping

AIMS Power 8000 Watt Power Inverter, PWRINV8KW12V

AIMS Power 8000 Watt Power Inverter, PWRINV8KW12V

AIMS Power 5000 Watt 24 Volt Power Inverter, PWRINV500024W

AIMS Power 5000 Watt 24 Volt Power Inverter, PWRINV500024W

Free Shipping

AIMS Power 6000 Watt Pure Sine Inverter Charger 120/240VAC Output, PICOGLF60W24V240VS

AIMS Power 6000 Watt Pure Sine Inverter Charger 120/240VAC Output, PICOGLF60W24V240VS

Free Shipping

AIMS Power 3000 Watt Pure Sine Inverter Charger, PICOGLF30W12V120VR

AIMS Power 3000 Watt Pure Sine Inverter Charger, PICOGLF30W12V120VR

Free Shipping

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

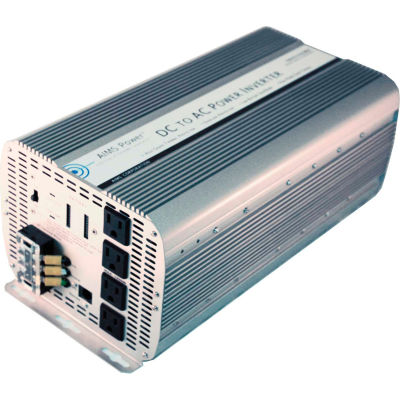

AIMS Power 5000 Watt 36 Volt Power Inverter, PWRINV500036W

Modeled off the top-selling AIMS 5000 Watt Modified Sine Power Inverter, this 36 volt DC inverter shares a lot of the same features for our customers with 36Vdc battery banks. A voltmeter and amp gauge on the front of the unit will read out valuable information on battery charge and load consumption. The inverter also features a direct connect terminal block for devices that require over 1500 watts. The terminal block will allow you to hardwire to utilize the full 5000 watt capacity of the inverter.

Features:
  • 5000 Watt max continuous power
  • 36 Volt Power Inverter
  • Modified sine wave
  • Volt meter on front panel to monitor your battery voltage
  • Amp meter on front panel to monitor your current use (rate at which battery is drained)
  • AC Direct Connect Terminal
  • Over Temperature LED indicator
  • Over Load LED indicator
  • Quadruple ac receptacle that can be used with any separate splitter to provide even more outlets
  • On/off switch
  • Over Temperature protection
  • Over Load protection Single cooling fan operation thermally controlled Internally fuse protected ac output short circuit protection
  • Auto reset on most fault conditions
  • Aluminum case for optimal cooling
  • Pre-wired for remote on/off switch
  • Pre-slotted mounting plate
  • Instruction manual
  • Free 1 year tech support
  • 1 Year Warranty Parts and Labor


Specifications:
  • Continuous output power: 5000 Watts
  • Surge power capability (peak power): 10,000 Watts
  • dc input / operating voltage: 30 to 48 Volts
  • Output voltage: 120 Volts ac +/- 10%
  • Output wave form: modified sine wave with phase correction
  • Output frequency: 60 Hz +/- 1 Hz
  • Battery low voltage alarm: 31 +/- 0.5 Volts
  • Battery low voltage shutdown: 28 +/- 0.5 Volts
  • No load current: < 0.9 Amps
  • Full load efficiency: 90%
  • 1/3 load efficiency: 95%
  • No load minimum operating temperature: -15 degrees Celsius
  • Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
  • AC Output Socket Type: quadruple Type 2 -3 prong
  • High input voltage protection: 48 volts
  • Low input voltage shutdown: 28 volts
  • Internal fuse protection
  • Product size (L x W x H): 17"X 7.75"X 6"
  • Weight: unit 18 lbs boxed 20 lbs
  • UL maximum recommended per outlet 1500W


Weights & Dimensions

  • Width 7-3/4 in
  • Length 17 in
  • Height 6 in
  • Weight 18 lbs

Product Details

  • DC Input Voltage 36 VDC
  • Internal Fuse Protection Yes
  • Outlet Socket Type 4 Outlets, UL rated 1500W Max Each. Includes Term. Block Option for Full 5000W
  • Brand AIMS Power
  • Continuous Output Power 5000 W
  • No Load Current <0.9 Amps A
  • Manufacturers Part Number PWRINV500036W
  • Output Voltage 120 VAC V
