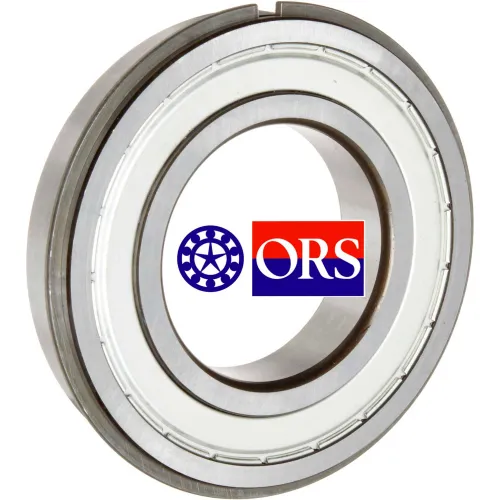

ORS 6305ZZNR Deep Groove Ball Bearing - Double Shielded Snap Ring 25mm Bore, 62mm OD

ORS 6305ZZNR Deep Groove Ball Bearing - Double Shielded Snap Ring 25mm Bore, 62mm OD

Item #: WBB1766223

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Minimum Quantity: 4

Price: $8.70

Save $0.43 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

ORS 6307-2RSNR Deep Groove Ball Bearing - Double Sealed Snap Ring 35mm Bore, 80mm OD

ORS 6307-2RSNR Deep Groove Ball Bearing - Double Sealed Snap Ring 35mm Bore, 80mm OD

ORS 6305 Deep Groove Ball Bearing - Open 25mm Bore, 62mm OD

ORS 6305 Deep Groove Ball Bearing - Open 25mm Bore, 62mm OD

TRITAN Deep Groove Ball Bearings (Inch) 1614-2RS, Sealed, Light Duty, 0.375" Bore, 1.125" OD

TRITAN Deep Groove Ball Bearings (Inch) 1614-2RS, Sealed, Light Duty, 0.375" Bore, 1.125" OD

TRITAN Deep Groove Ball Bearings (Inch) R12-2RS, Sealed, Light Duty, 0.75" Bore, 1.625" OD

TRITAN Deep Groove Ball Bearings (Inch) R12-2RS, Sealed, Light Duty, 0.75" Bore, 1.625" OD

ORS 62203-2RS Deep Groove Ball Bearing - Wide Width Double Sealed 17mm Bore, 40mm OD

ORS 62203-2RS Deep Groove Ball Bearing - Wide Width Double Sealed 17mm Bore, 40mm OD

ORS 6005-2RS Deep Groove Ball Bearing - Double Sealed 25mm Bore, 47mm OD

ORS 6005-2RS Deep Groove Ball Bearing - Double Sealed 25mm Bore, 47mm OD

ORS 6200ZZ Deep Groove Ball Bearing - Double Shielded 10mm Bore, 30mm OD

ORS 6200ZZ Deep Groove Ball Bearing - Double Shielded 10mm Bore, 30mm OD

ORS 6200-2RS Deep Groove Ball Bearing - Double Sealed 10mm Bore, 30mm OD

ORS 6200-2RS Deep Groove Ball Bearing - Double Sealed 10mm Bore, 30mm OD

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

ORS 6305ZZNR Deep Groove Ball Bearing - Double Shielded Snap Ring 25mm Bore, 62mm OD

ORS Deep Groove Ball Bearings. Deep Grove Ball Bearings, often called Radial Ball Bearings, accommodate radial and axial loads, and are capable of operating at higher speeds. Due to these capabilities, they are the most widely used type of bearing. ORS Deep Groove Ball Bearings are made of AISI 52100 grade steel heat-stabilized to 300°F, in ABEC 1 tolerance (ISO Normal) and with C3 radial clearance. All of ORS bearings are 100% noise tested and produced to EMQ. Forgings and heat treatment are done in house. ORS is offering Double Sealed and Double Shielded bearings with Snap Ring for most sizes. ORS Bearings Inc. was established in 1982 with the license of Steyr Waelzlager of Austria, and headquartered in Ankara, Turkey with its 1,000,000 square foot production facility. The company has been granted numerous awards and certificates such as ISO 9001:2008, ISO/TS 16949:2009, ISO 14001, ISO/IEC 27001:2005, OHSAS 18001, FORD Q1 and many more. ORS bearings are commonly used in electric motors, appliances, fans, pumps, machine tool, agriculture, clutches, conveyors, food processing, textile and many other equipment and machinery.

Weights & Dimensions

  • Tolerance ISO Normal
  • Bore Diameter 25 mm
  • Width 17 mm
  • Max Housing Corner Radius 1.1
  • Max Housing Corner Radius, Snap Ring side 0.5
  • Diameter 62 mm
  • Static Load 12.13 N
  • Max Mounted Snap Ring OD 67.7

Product Details

  • Operating Temperature - 20 / + 300°F °F
  • Dynamic Load (kN) 23.62
  • Cage Material Pressed steel
  • Prepacked Grease Polyrex EM
  • Internal Radial Clearance C3
  • Max Shaft Fillet Corner Radius 1.1
  • Brand ORS
  • Bearing Type Double Shielded, Snap Ring
  • Manufacturers Part Number 6305ZZNR
  • Grease Max Speed 10000 rpm
