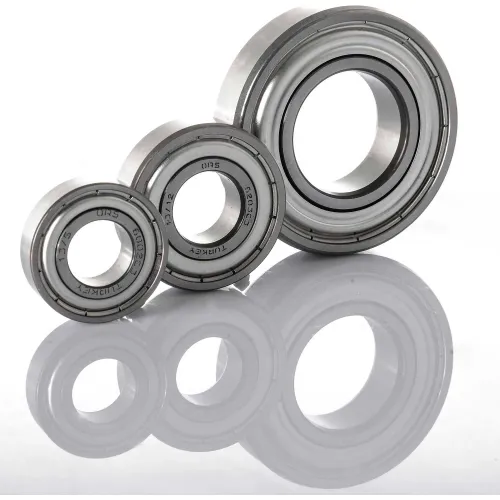

ORS 6306ZZ P53 Deep Groove Ball Bearing - Double Shielded ABEC 5 30mm Bore, 72mm OD

ORS 6306ZZ P53 Deep Groove Ball Bearing - Double Shielded ABEC 5 30mm Bore, 72mm OD

Item #: WBB1766137

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $78.95

Save $3.95 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

ORS 6307-2RSNR Deep Groove Ball Bearing - Double Sealed Snap Ring 35mm Bore, 80mm OD

ORS 6307-2RSNR Deep Groove Ball Bearing - Double Sealed Snap Ring 35mm Bore, 80mm OD

ORS 6305 Deep Groove Ball Bearing - Open 25mm Bore, 62mm OD

ORS 6305 Deep Groove Ball Bearing - Open 25mm Bore, 62mm OD

TRITAN Deep Groove Ball Bearings (Inch) 1614-2RS, Sealed, Light Duty, 0.375" Bore, 1.125" OD

TRITAN Deep Groove Ball Bearings (Inch) 1614-2RS, Sealed, Light Duty, 0.375" Bore, 1.125" OD

TRITAN Deep Groove Ball Bearings (Inch) R12-2RS, Sealed, Light Duty, 0.75" Bore, 1.625" OD

TRITAN Deep Groove Ball Bearings (Inch) R12-2RS, Sealed, Light Duty, 0.75" Bore, 1.625" OD

ORS 62203-2RS Deep Groove Ball Bearing - Wide Width Double Sealed 17mm Bore, 40mm OD

ORS 62203-2RS Deep Groove Ball Bearing - Wide Width Double Sealed 17mm Bore, 40mm OD

ORS 6005-2RS Deep Groove Ball Bearing - Double Sealed 25mm Bore, 47mm OD

ORS 6005-2RS Deep Groove Ball Bearing - Double Sealed 25mm Bore, 47mm OD

ORS 6200ZZ Deep Groove Ball Bearing - Double Shielded 10mm Bore, 30mm OD

ORS 6200ZZ Deep Groove Ball Bearing - Double Shielded 10mm Bore, 30mm OD

ORS 6200-2RS Deep Groove Ball Bearing - Double Sealed 10mm Bore, 30mm OD

ORS 6200-2RS Deep Groove Ball Bearing - Double Sealed 10mm Bore, 30mm OD

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

ORS 6306ZZ P53 Deep Groove Ball Bearing - Double Shielded ABEC 5 30mm Bore, 72mm OD

ORS, Deep Groove Ball Bearings, P53. Machine tools and other precision equipment require superior bearing performance; high rotational speed, high degree of running accuracy, minimum friction and heat generation as well as quiet and smooth running. ORS P53 (ABEC 5) Deep Groove Ball Bearings help optimize performance of these applications. ORS P53 bearings are used in machine tools, machine spindles, mills, high speed turbochargers, aerospace, robotics and health industrial machinery. Bearings are made of AISI 52100 grade steel heat-stabilized to 300°F, in ABEC 1 tolerance (ISO Normal) and with C3 radial clearance. All of ORS bearings are 100% noise tested and produced to EMQ. Forgings and heat treatment are done in house. ORS Bearings Inc. was established in 1982 with the license of Steyr Waelzlager of Austria, and headquartered in Ankara, Turkey with its 1,000,000 square foot production facility. The company has been granted numerous awards and certificates such as ISO 9001:2008, ISO/TS 16949:2009, ISO 14001, ISO/IEC 27001:2005, OHSAS 18001, FORD Q1 and many more.

Weights & Dimensions

  • Tolerance ISO P5 (ABEC 5)
  • Bore Diameter 30 mm
  • Width 19 mm
  • Max Housing Corner Radius 1.1
  • Diameter 72 mm
  • Static Load 15.82 N

Product Details

  • Operating Temperature -20 / 300°F
  • Dynamic Load (kN) 28.16
  • Cage Material Polyamid
  • Prepacked Grease Polyrex EM
  • Internal Radial Clearance C3
  • Max Shaft Fillet Corner Radius 1.1
  • Brand ORS
  • Bearing Type Double Shielded, ABEC 5
  • Manufacturers Part Number 6306ZZ-P53
  • Grease Max Speed 14100 rpm
