ORS 6309ZZ P53 Deep Groove Ball Bearing - Double Shielded ABEC 5 45mm Bore, 100mm OD

ORS 6309ZZ P53 Deep Groove Ball Bearing - Double Shielded ABEC 5 45mm Bore, 100mm OD

Item #: WBB1765940

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $154.95

Save $7.75 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

ORS 6307-2RSNR Deep Groove Ball Bearing - Double Sealed Snap Ring 35mm Bore, 80mm OD

ORS 6307-2RSNR Deep Groove Ball Bearing - Double Sealed Snap Ring 35mm Bore, 80mm OD

ORS 6305 Deep Groove Ball Bearing - Open 25mm Bore, 62mm OD

ORS 6305 Deep Groove Ball Bearing - Open 25mm Bore, 62mm OD

ORS 62203-2RS Deep Groove Ball Bearing - Wide Width Double Sealed 17mm Bore, 40mm OD

ORS 62203-2RS Deep Groove Ball Bearing - Wide Width Double Sealed 17mm Bore, 40mm OD

ORS 6200-2RS Deep Groove Ball Bearing - Double Sealed 10mm Bore, 30mm OD

ORS 6200-2RS Deep Groove Ball Bearing - Double Sealed 10mm Bore, 30mm OD

Nachi Radial Ball Bearing 6222-2RS, Double Sealed, 110MM Bore, 200MM OD

Nachi Radial Ball Bearing 6222-2RS, Double Sealed, 110MM Bore, 200MM OD

Nachi Radial Ball Bearing 6911-2RS, Double Sealed, 55MM Bore, 80MM OD

Nachi Radial Ball Bearing 6911-2RS, Double Sealed, 55MM Bore, 80MM OD

SMT SS6009-2RS Deep Groove Ball Bearing, Stainless Steel, Double Sealed, OD 75mm, Bore 45mm,Metric

SMT SS6009-2RS Deep Groove Ball Bearing, Stainless Steel, Double Sealed, OD 75mm, Bore 45mm,Metric

SMT SS6306-2RS Deep Groove Ball Bearing, Stainless Steel, Double Sealed, OD 72mm, Bore 30mm,Metric

SMT SS6306-2RS Deep Groove Ball Bearing, Stainless Steel, Double Sealed, OD 72mm, Bore 30mm,Metric

SMT SS6010-2RS Deep Groove Ball Bearing, Stainless Steel, Double Sealed, OD 80mm, Bore 50mm,Metric

SMT SS6010-2RS Deep Groove Ball Bearing, Stainless Steel, Double Sealed, OD 80mm, Bore 50mm,Metric

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

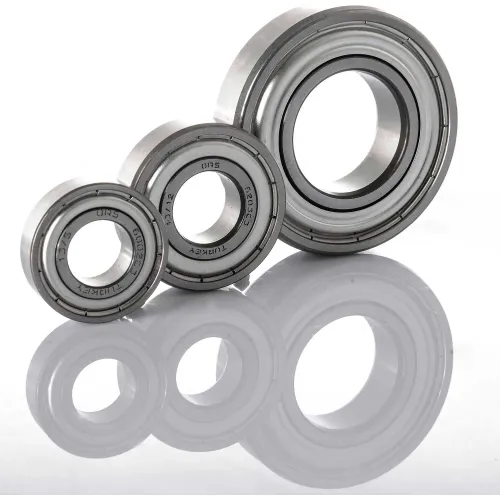

ORS 6309ZZ P53 Deep Groove Ball Bearing - Double Shielded ABEC 5 45mm Bore, 100mm OD

ORS, Deep Groove Ball Bearings, P53. Machine tools and other precision equipment require superior bearing performance; high rotational speed, high degree of running accuracy, minimum friction and heat generation as well as quiet and smooth running. ORS P53 (ABEC 5) Deep Groove Ball Bearings help optimize performance of these applications. ORS P53 bearings are used in machine tools, machine spindles, mills, high speed turbochargers, aerospace, robotics and health industrial machinery. Bearings are made of AISI 52100 grade steel heat-stabilized to 300°F, in ABEC 1 tolerance (ISO Normal) and with C3 radial clearance. All of ORS bearings are 100% noise tested and produced to EMQ. Forgings and heat treatment are done in house. ORS Bearings Inc. was established in 1982 with the license of Steyr Waelzlager of Austria, and headquartered in Ankara, Turkey with its 1,000,000 square foot production facility. The company has been granted numerous awards and certificates such as ISO 9001:2008, ISO/TS 16949:2009, ISO 14001, ISO/IEC 27001:2005, OHSAS 18001, FORD Q1 and many more.

Weights & Dimensions

  • Tolerance ISO P5 (ABEC 5)
  • Bore Diameter 45 mm
  • Width 25 mm
  • Max Housing Corner Radius 1.5
  • Diameter 100 mm
  • Static Load 31.67 N

Product Details

  • Operating Temperature -20 / 300°F
  • Dynamic Load (kN) 52.77
  • Cage Material Polyamid
  • Prepacked Grease Polyrex EM
  • Internal Radial Clearance C3
  • Max Shaft Fillet Corner Radius 1.5
  • Brand ORS
  • Bearing Type Double Shielded, ABEC 5
  • Manufacturers Part Number 6309ZZ-P53
  • Grease Max Speed 9900 rpm
