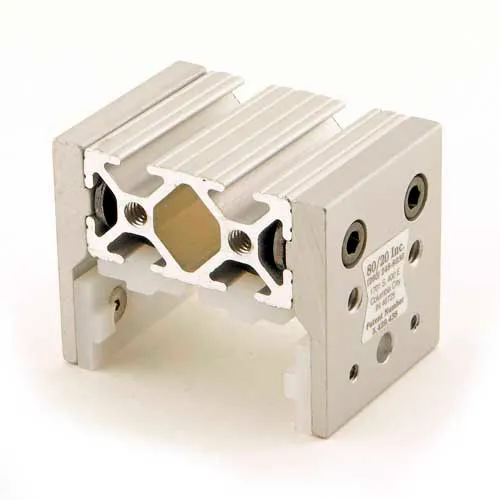

80/20 6731 Single UniBearing™ Bearing Assembly, Short

Features: 1/4-20 x 1.500" Socket Head Cap Screw (SHCS) 1/4-20 Slide-in Economy T-Nut - Centered Thread

The butt fastener assembly is comprised of a bolt and two cams. The butt fastener connects profiles end-to-end and provides a clean, flush connection, especially convenient where space restrictions apply. The butt fastener can also be used to connect shorter bars together where logistics or space makes it difficult to maneuver longer profiles. This connection method requires a counterbore machining service on each profile. TIP: Butt Fastener Machining will need to be added to the profile when ordering.

The standard angle clamp block is typically mounted to the T-slot. The tab grips into the mating profile to help align and hold the clamp, enabling adjustments and a range of various angles. The standard angle clamp block is sold in pairs and requires no machining services. The mounting hardware is included and can be found on the "Included Hardware" tab.

3409 is comprised of: 1/4-20 x .625" Flat Head Socket Cap Screw (FHSCS) 15 & 40 Series 1/4-20 Standard Drop-in T-Nut

3424 is comprised of: 5/16-18 x 2.000" Socket Head Cap Screw (SHCS) 5/16-18 Slide-in Economy T-Nut - Offset Thread .349" ID Washer
