The 12 hole - cross flat plate is an external fastening method that can be used to join more than two profiles or even create a 4-way connection hub. It provides a strong, long-lasting connection that is easy to assemble and requires no machining services. The 12 hole - cross flat plate is durable and can be repositioned and reused. Tip: Use double or triple slide-in economy T-nuts to save time and money. Pre-load your hardware prior to connecting profiles to simplify your assembly.
Share
Spec Sheet

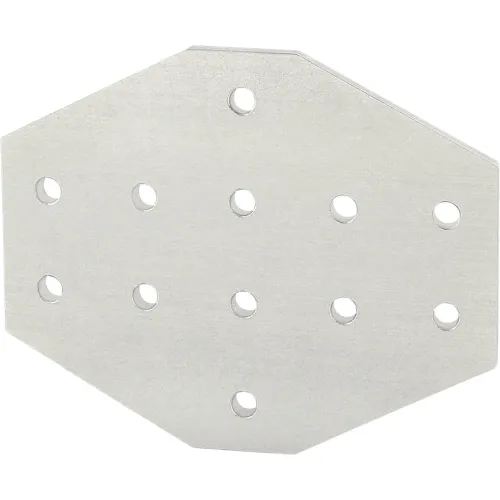

80/20® 10 Series 12 Hole Cross Joining Plate
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$24.50
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 5 |
| Width | 4 in |
| Height | 3/16 in |
| Dimension A | 4 |
| Dimension B | 5 |
Product Details
| Type | Cross Joining Plate |
| Finish Type | Anodize |
| Material | Aluminum |
| Series | 10 |
| Manufacturers Part Number | 4160 |
| Brand | 80/20 Inc |
