The universal structural right angle pivot nub is an external fastening method commonly used as a connection hub to create a structural pivot ranging from 0-90 degrees either parallel or perpendicular to the mounting profile. The universal structural right angle pivot nub requires no machining services and can be easily assembled, lending itself to repositioning and reuse. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
Share
Spec Sheet

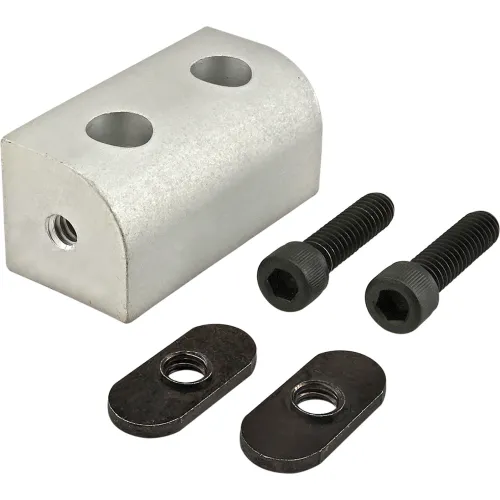

80/20® 10 Series 2" Right Angle Nub
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$15.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 2-1/2 |
| Width | 1 in |
| Dimension A | 1 |
| Dimension B | 2 |
Product Details
| Type | Right Angle Pivot Nub |
| Finish Type | Anodize |
| Material | Aluminum |
| Series | 10 |
| Manufacturers Part Number | 4003 |
| Brand | 80/20 Inc |
