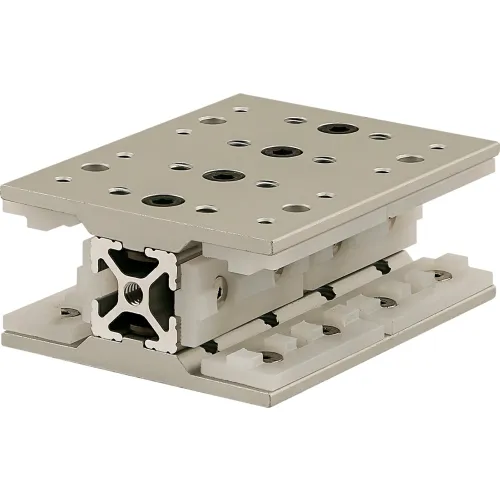

The long – double mount UniBearing™ assembly is commonly used for linear motion applications and is comprised of a long double mount UniBearing™ that is attached to a T-slot profile. There are pre-tapped holes in the profile ends as well as in the housing unit for connecting accessories. Shim kits are included.
Share
Spec Sheet
80/20® 10 Series Long Double Mount Unibearing™ Assembly, 3-1/8"H
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$79.95
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 4 |
| Width | 3-1/8 in |
| Height | 3-1/8 in |
| Dimension A | 1-5/8 |
| Dimension B | 4 |
Product Details
| Type | Long Double Unibearing |
| Finish Type | Anodize |
| Material | Aluminum |
| Series | 10 |
| Manufacturers Part Number | 6736 |
| Brand | 80/20 Inc |
