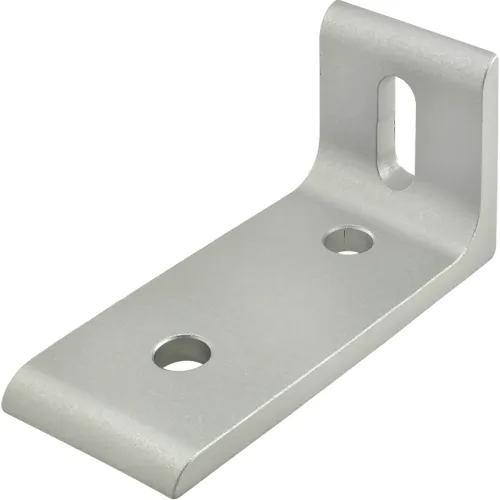

The 3 hole - slotted inside corner bracket is an external fastening method that creates a 90 degree connection. There are two stacked holes on one side and one slotted hole on the opposite side of the bracket. The slotted hole allows for a larger degree of adjustability between connecting profiles. This fastener requires no machining services and can provide infinite positioning along the profile T-slot. The 3 hole - slotted inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. This bracket can be repositioned and reused.
Share
Spec Sheet
80/20® 15 Series & Ready Tube 3 Hole Slotted Inside Corner Bracket
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$9.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 1-5/16 |
| Width | 1-1/2 in |
| Height | 1/4 in |
| Dimension A | 3 |
| Dimension B | 1-1/2 |
Product Details
| Type | Corner Bracket |
| Finish Type | Anodize |
| Material | Aluminum |
| Series | 15 |
| Manufacturers Part Number | 4280 |
| Brand | 80/20 Inc |
