The 3 hole - triangular pivot plate is an external connection method that can be used either with a nub or mounted directly to the T-slot. It is typically used to create a structured angle connection between profiles. This fastening option provides a long-lasting connection and requires no machining services. It can be easily assembled, lending itself to repositioning and reuse. Tip: Pre-load your hardware prior to connecting profiles to simplify your assembly and save time.
Share
Spec Sheet

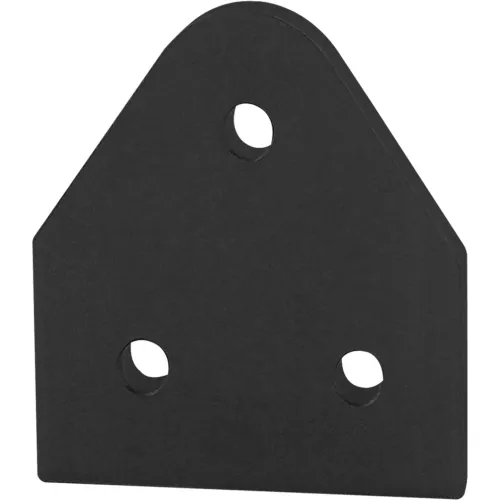

80/20® 15 Series 3 Hole Triangular Pivot Plate, Black
(1)
|
Questions & Answers (0)
Product Description
PRICE
$17.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 3-1/2 |
| Width | 1/4 in |
| Height | 3 in |
| Dimension A | 3/4 |
| Dimension B | 1-1/2 |
Product Details
| Type | Pivot Plate |
| Finish Type | Anodize |
| Material | Aluminum |
| Series | 15 |
| Manufacturers Part Number | 4372-BLACK |
| Brand | 80/20 Inc |
