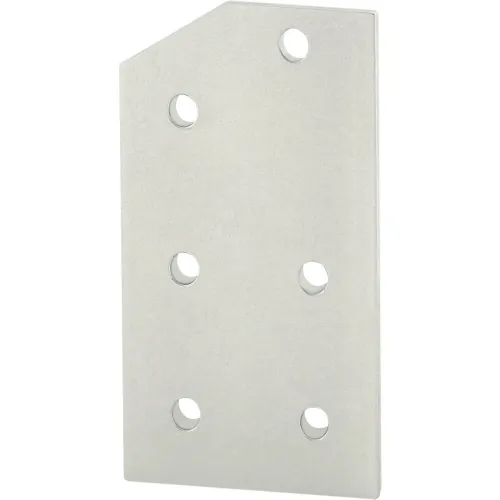

The 6 hole - 30 degree angled flat plate is an external fastening method that requires no machining services. This flat plate creates a 30 degree angle between profiles and its shape reinforces the strength of the connection. It is a durable option that is easy to assemble and can be reconfigured and reused. Tip: Use a double slide-in economy T-nut to save time and money. Pre-load your hardware prior to connecting profiles to simplify your assembly.
Share
Spec Sheet
80/20® 15 Series 6 Hole 30 Degree Angle Joining Plate
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$13.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 3 |
| Dimension A | 5 |
| Dimension B | 3 |
Product Details
| Type | 6 Hole 30 Degree Angle Joining Plate |
| Finish Type | Anodize |
| Material | Aluminum |
| Series | 15 |
| Manufacturers Part Number | 4330 |
| Brand | 80/20 Inc |
