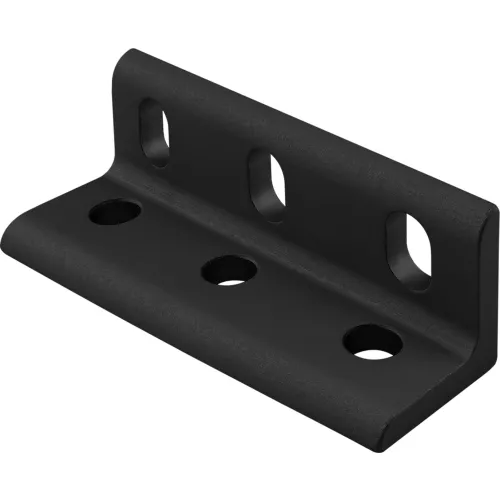

The 6 hole - wide slotted inside corner bracket is an external fastening method that creates a 90 degree connection. There are three adjacent holes on each side of the bracket. Three of the holes on one side are slotted, allowing for a larger degree in adjustability between connecting profiles. This bracket can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. It engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
Share
Spec Sheet
80/20® 15 Series 6 Hole Wide Slotted Inside Corner Bracket, Black
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$19.50
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 4-5/16 |
| Width | 1-1/2 in |
| Height | 1-1/2 in |
| Dimension A | 1-1/2 |
| Dimension B | 1-1/2 |
Product Details
| Type | Inside Corner Bracket |
| Finish Type | Anodize |
| Material | Aluminum |
| Series | 15 |
| Manufacturers Part Number | 4296-BLACK |
| Brand | 80/20 Inc |
