The 2 hole - straight flat plate is an external fastening method that requires no machining services. It is a durable connection that can be easily repositioned and reused. This flat plate can provide infinite positioning along the profile T-slot, allowing for a large degree of adjustability. It engages the 2-degree drop-lock feature for most profile series when the assembly bolts are tightened to the required torque, creating a strong connection. Tip: Pre-load your hardware prior to connecting profiles to simplify your assembly and save time.
Share
Spec Sheet

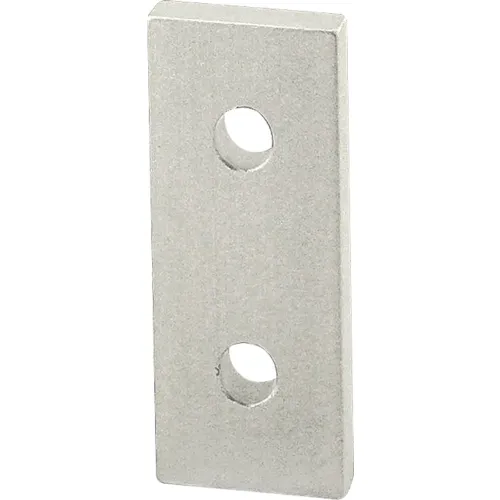

80/20® 20 Series 2 Hole Straight Flat Plate, Clear
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$6.10
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 11/16 |
| Width | 1-9/16 in |
| Height | 3/8 in |
| Dimension A | 40 |
| Dimension B | 18 |
Product Details
| Type | Joining Strip |
| Finish Type | Anodize |
| Material | Aluminum |
| Series | 20 |
| Manufacturers Part Number | 20-4107 |
| Brand | 80/20 Inc |
