The 2 hole - transition inside corner bracket creates a 90 degree connection between profiles within the same product type (either fractional or metric) but of differing series. It is an external fastening method that requires no machining services. The bracket is flush with the profiles, requiring taking up less space in the overall design. This option can provide infinite positioning along the profile T-slot, allowing for a large degree of adjustability as well as being reconfigurable and reusable. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
Share
Spec Sheet

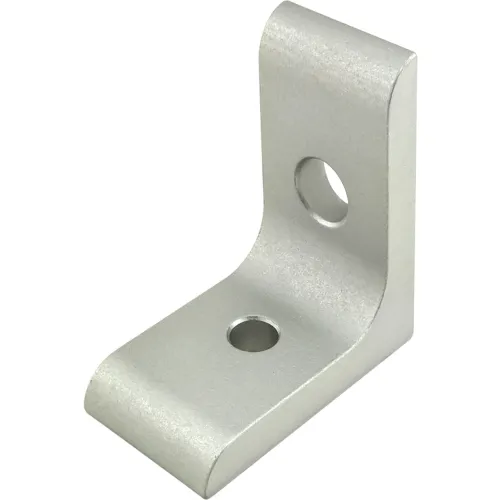

80/20® 25, 40 Series 2 Hole Transition Inside Corner bracket, Clear
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$6.10
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| Length | 1-9/16 |
| Width | 45846 in |
| Height | 1-9/16 in |
| Dimension A | 40 |
| Dimension B | 40 |
Product Details
| Type | Inside Corner Bracket |
| Finish Type | Anodize |
| Material | Aluminum |
| Series | 25, 40 |
| Manufacturers Part Number | 65-4503 |
| Brand | 80/20 Inc |
