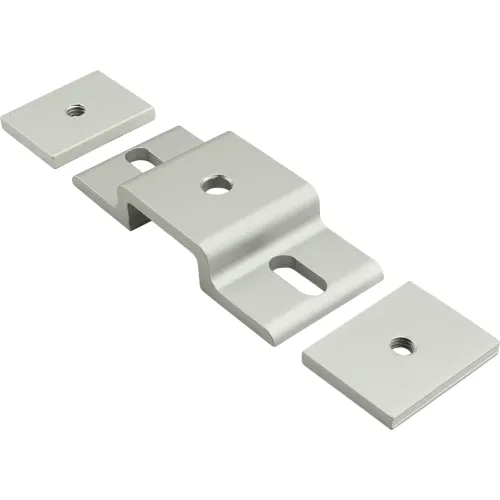

The double arm narrow mesh retainer with narrow backing plates consists of one double arm narrow mesh retainer and two narrow backing plates. The hardware to attach the backing plates to the retainer should be selected based on the wire mesh panel type and thickness. The suggested hardware to mount the retainer to the T-slot can be found on the "Suggested Hardware" tab.
Share
Spec Sheet
80/20® 25 Series Double Arm Narrow Mesh Retainer w/ Backing Plate, Clear
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$15.50
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Product Details
| Series | 25 |
| Manufacturers Part Number | 25-2522 |
| Type | Mesh Retainer |
| Finish Type | Anodize |
| Material | Aluminum |
| Brand | 80/20 Inc |
