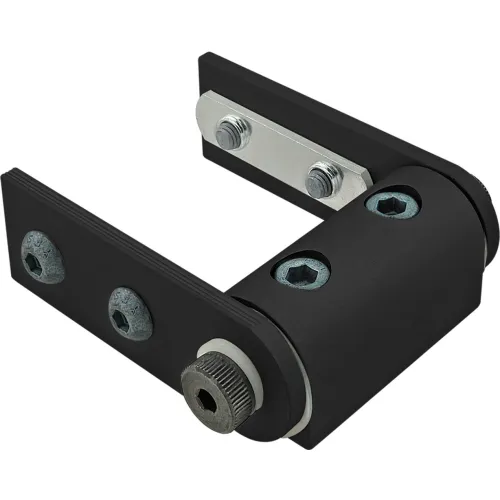

80/20® 25 Series Standard Universal Dynamic Pivot Assembly with Dual Straight Arms, Black

3399 is comprised of: 1/4-20 x .500" Button Head Socket Cap Screw (BHSCS) 1/4-20 Roll-In T-Nut with Flex Handle .286" ID Washer

The "L" dynamic pivot arm is commonly used in assemblies to create a dynamic pivot; it provides a long-lasting connection and requires no machining services. The pivot arm can be easily assembled, lending itself to repositioning and reuse and has permanently lubricated bronze bushings that act as high-strength pivot points as well as nylon thrust washers that protect the arm. The hardware to mount the pivot arm to the profile is included. The suggested mounting hardware to attach the arm to the nub can be found on the "Suggested Hardware" tab. Tip: Pre-load your hardware prior to ...

3416 is comprised of: 1/4-20 x .375" Button Head Socket Cap Screw (BHSCS) 1/4-20 Slide-in Economy T-Nut - Centered Thread

3429 is comprised of: 5/16-18 x 2.250" Socket Head Cap Screw (SHCS) 5/16-18 Slide-in Economy T-Nut - Offset Thread

The "L" dynamic pivot arm is commonly used in assemblies to create a dynamic pivot; it provides a long-lasting connection and requires no machining services. The pivot arm can be easily assembled, lending itself to repositioning and reuse and has permanently lubricated bronze bushing that act as high-strength pivot point. The hardware to mount the pivot arm to the profile is included. The suggested mounting hardware to attach the arm to the nub can be found on the "Suggested Hardware" tab. Tip: Pre-load your hardware prior to connecting profiles to simplify your assembly and save time
