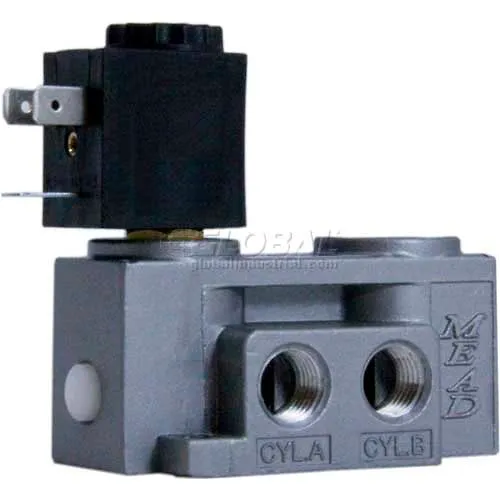

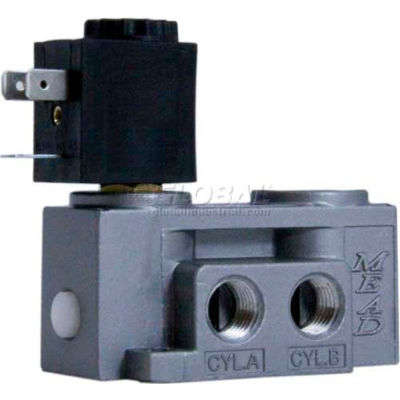

Bimba-Mead Air Valve N2-SCD-24VDC, 5 Port, 2 Pos, Single, 1/4" NPTF, 24VDC

Bimba-Mead Air Valve N2-SCD-24VDC, 5 Port, 2 Pos, Single, 1/4" NPTF, 24VDC

Item #: WBB571961

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $205.95

Save $10.30 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Bimba-Mead Air Valve MV-15, 3 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Roller Leaf Actuator

Bimba-Mead Air Valve MV-15, 3 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Roller Leaf Actuator

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Air Valve MV-140, 3 Port, 2 Pos, Manual, 1/8" NPTF Port, Palm Actuator

Bimba-Mead Air Valve MV-140, 3 Port, 2 Pos, Manual, 1/8" NPTF Port, Palm Actuator

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Shutoff/Relief Valve MGZ300-10-T, 3/8" NPT, Bracket

Bimba-Mead Shutoff/Relief Valve MGZ300-10-T, 3/8" NPT, Bracket

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Air Valve N2-SCD-24VDC, 5 Port, 2 Pos, Single, 1/4" NPTF, 24VDC

Designed for Long Life Nova 4-way directional control valves offer state-of-the-art air valve design. Nova utilizes a single bonded rubber spool with finely ground sealing lands that travel only .047"less than 1/16th of an inch This economy of movement assures long valve life yet generates enough flow to power a 4" bore cylinder. Large Air Flow With Dual Exhausts1/4" NPTF ported Nova valves produce a large output flow of 57 cubic feet per minute at 100 PSI inlet pressure (Cv=1.0). Each output port has its own exhaust port so that individual exhaust control is possible. Manual Override as Standard All Nova valves are supplied with manual overrides so that valve actuation may be triggered without electricity or air to the pilots. Easy To Repair Nova valves are designed to permit complete replacement of all wearing parts in seconds without touching the piping or electrical wiring. All you need are a pair of snap ring pliers and a replacement spool.

  • LENGTH INCHES 3-35/64
  • WIDTH INCHES 1-25/32
  • HEIGHT INCHES 2-29/32
  • BRAND Bimba-Mead
  • MANUFACTURERS PART NUMBER N2-SCD-24VDC
  • TYPE 5 Port 2 Position
  • TEMPERATURE RANGE 0°F to 120°F
  • MANUAL OVERRIDE Delrin
  • SPOOL Aluminum
  • PRESSURE Vacuum to 120 PSI
  • LUBRICATION Petroleum Based Oil
  • RETURN Spring
  • SOL RESPONSE 30-40 ms
  • MEDIA Air or Inert Gas
  • FLOW Cv = 1.0
  • PILOT PORTS 1/8" NPSF
  • MINIMUM PILOT PRESSURE 40 PSI
  • PORT SIZE 1/4" NPTF
  • PLUGS Plastic
  • FILTRATION 40 Micron
