Simplify the world of push-to-connect fittings with Alpha Swift-Fit, one fitting that works with either tapered or straight threads. If you have a pipe thread, you can count on Swift-Fit to seal without leaking. Port size can easily be identified but what about that thread pitch
- BRAND Aignep USA
- MANUFACTURERS PART NUMBER 50920N-6-1/4
- STYLE Swift-Fit
- TYPE Push-To-Connect Flow Controls
- NOMINAL FLOW DIAMETER 6mm
- LIP SEAL NBR 70
- THREAD SEAL NBR 70
- TUBING COMPATIBILITY Nylon, Polyethylene, Polyurethane,Copper
- SAFETY RING Technopolymer
- FUNCTION CODE B
- PACKAGE QUANTITY 2
- SLEEVE Nickel Plated Brass
- MEDIA Compressed Air, Inert Gases
- PRESSURE RATING Vacuum-250 PSI
- TEMPERATURE RATING 0-160° F
- LENGTH INCHES 1
- SEAL TYPE Buna
- BODY Nickel Plated Brass
- GRIPPER COLLET Stainless Steel
- THRUST RING Nickel Plated Brass or Composite
- THREAD Universal
- WEIGHT LBS 0.12
There are no questions for this product.

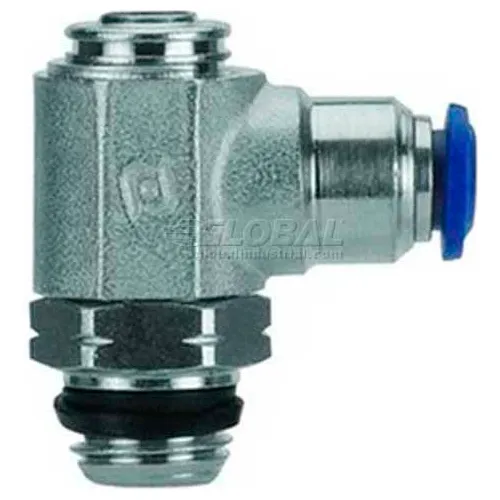

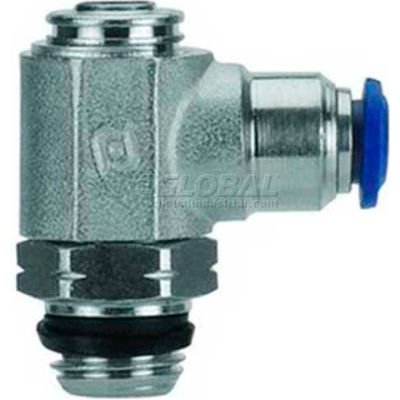

AIGNEP Needle Valve 50920N-6-1/4, Screw Adj, Flow Bi-Direc, 6mm, 1/4" Swift-Fit Universal - Pkg Qty 2
$12.0
- Product Information
- Customer Review
- Product Q&A
AIGNEP Needle Valve 50920N-6-1/4, Screw Adj, Flow Bi-Direc, 6mm, 1/4" Swift-Fit Universal - Pkg Qty 2
Item #: WBB665981
