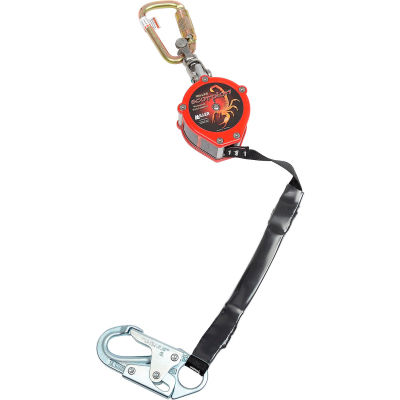

ANSI Z359-2007 COMPLIANT CARABINER. The lightweight, compact design of the 9 ft. (2.7 m) Miller Scorpion Personal Fall Limiter provides workers an affordable alternative to shock-absorbing lanyards. In a head-to-head comparison with shock-absorbing lanyards, the Scorpion web retractable requires less fall clearance, offers greater mobility and prevents tripping hazards. Quick-activating, high-strength stainless steel braking system – arrests free falls.
Features
- Small, lightweight design 2.9 lbs. (1.3 kg)
- Steel Twist-Lock Carabiner and swivel shackle Unit Connector
- Steel Locking Snap Hook Lanyard End Connector
- Extremely affordable alternative to shock-absorbing lanyards
- Plastic housing
- PTFE HT webbing protection
- Visual load indicator-indicates the unit must be removed from service
- Dual operation options: Attach directly to back D-ring as a personal fall limiter or use as traditional self-retracting life line
Weights & Dimensions
- Hook Opening 3/4 in
- Length 9 ft
- Weight Capacity 310 lbs
- Weight 4 lb lbs
Product Details
- Cable Material Polyester Web
- Description Miller Scorpion™ Personal Fall Limiters
- Number of Legs 1
- Connection Style Steel Locking Snap Hook
- Brand Miller
- Material Stainless Steel
- Workers per System 1
- Manufacturers Part Number PFL-4-Z7/9FT
- Color Family Red
- Unit Connector Steel Twist-Lock Carabiner & Swivel Shackle
- Respirator Connection Type Steel Locking Snap Hook
Compliance & Certifications
- Certifications OSHA 1910.66, OSHA 1926.502(d), ANSI Z359-2007, CSA 259.2.2 -98(Type I)
There are 1 questions and 1 answer for this product.
-
I could not see any connector gate load markings on any of the provided pictures. Do both PFL connector gates meet the ANSI/ASSE Z359.1-2007, section 3.2.1.4/ 4.3.1.1.2 Gate Face Testing requirement for withstanding min 3600lbf ? Thanks
Question Asked By: Gary, March 04, 2018
Answer This Question
Question Answered By:
-
anonymous
Hello Gary, the connecting components meet or exceed ANSI Z359.12-2009 or CSA Z259.12-11 requirements for 3,600 lbs. gate strength. Thank you for your interest in our product.
-
Miller Scorpion™ Personal Fall Limiters, PFL-4-Z7/9FT
$295.95
