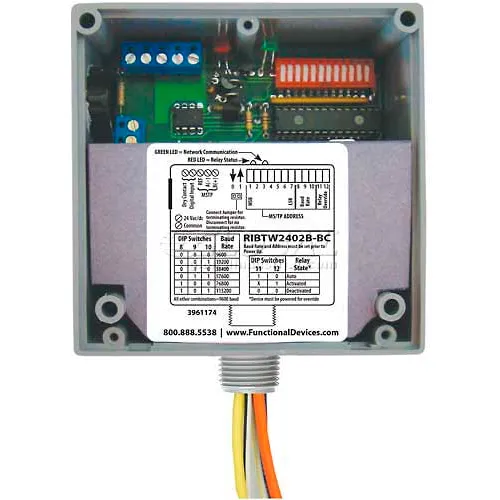

RIB® BacNet Enclosed Relay RIBTW2402B-BC, 20A, SPDT, 24VAC/DC/208-277VAC, W/1 Digital Input

RIB® BacNet Enclosed Relay RIBTW2402B-BC, 20A, SPDT, 24VAC/DC/208-277VAC, W/1 Digital Input

Item #: WBB1034360

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$186.20 up to 36% OFF

Price: $126.95

Save $6.35 with 5% off when you use your Global Industrial Credit Card.

Quantity Discount

  • Buy 1-5 $126.95 ea.
  • Buy 6+ $119.95 ea.

Quantity

Customers Also Viewed

RIB® BacNet Enclosed Relay RIBTW2401B-BC, 20A, SPDT, 24VAC/DC/120VAC, W/1 Digital Input

RIB® BacNet Enclosed Relay RIBTW2401B-BC, 20A, SPDT, 24VAC/DC/120VAC, W/1 Digital Input

RIB® LonWorks Enc. Relay RIBTWX2402SB-LN, 20A, SPST, HOA, 24VAC/DC/208VAC, Current Sensor

RIB® LonWorks Enc. Relay RIBTWX2402SB-LN, 20A, SPST, HOA, 24VAC/DC/208VAC, Current Sensor

RIB® Enclosed Relay RIBU1C, 10A, SPDT, 10-30VAC/DC/120VAC

RIB® Enclosed Relay RIBU1C, 10A, SPDT, 10-30VAC/DC/120VAC

RIB® Enclosed Power Relay RIB2401B, 20A, SPDT, 24VAC/DC/120VAC

RIB® Enclosed Power Relay RIB2401B, 20A, SPDT, 24VAC/DC/120VAC

RIB® Enclosed Solid-Core AC Sensor RIBXKTF, .25-150A, SPST, Fixed, Terminals, 30VAC/DC

RIB® Enclosed Solid-Core AC Sensor RIBXKTF, .25-150A, SPST, Fixed, Terminals, 30VAC/DC

RIB® Dry Contact Input Relay RIB01BDC, Enclosed, 120VAC, 20A, SPDT

RIB® Dry Contact Input Relay RIB01BDC, Enclosed, 120VAC, 20A, SPDT

RIB® Enclosed Power Relay RIB2401SB, 20A, SPST-NO, 24VAC/DC/120VAC, Override

RIB® Enclosed Power Relay RIB2401SB, 20A, SPST-NO, 24VAC/DC/120VAC, Override

RIB® Enclosed Solid-Core AC Sensor RIBXK420-20, 0-20A, 4-20mA Transmitter Output, Wire Leads

RIB® Enclosed Solid-Core AC Sensor RIBXK420-20, 0-20A, 4-20mA Transmitter Output, Wire Leads

RIB® Track Mount Relay RIBMU1C, 4", 15A, SPDT, 10-30VAC/DC/120VAC

RIB® Track Mount Relay RIBMU1C, 4", 15A, SPDT, 10-30VAC/DC/120VAC

RIB® Dry Contact Input Relay RIB01SBDC, Enclosed, 120VAC, 20A, SPST, Override

RIB® Dry Contact Input Relay RIB01SBDC, Enclosed, 120VAC, 20A, SPST, Override

RIB® Enclosed Power Relay RIB02P, 20A, DPDT, 208-277VAC

RIB® Enclosed Power Relay RIB02P, 20A, DPDT, 208-277VAC

Honeywell R847A1085 120V 50/60 Hz Heavy Duty Switching Relay

Honeywell R847A1085 120V 50/60 Hz Heavy Duty Switching Relay

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

RIB® BacNet Enclosed Relay RIBTW2402B-BC, 20A, SPDT, 24VAC/DC/208-277VAC, W/1 Digital Input

RIB® BACnet, LonWorks, and Ethernet Network Compatible Devices can be hard wired and used instead of more expensive multi-output controllers when a few more control points are needed, and large controllers are too much for the job. They can also be used when control points are widely spread throughout the job site. These devices have been prepackaged to save the installer the time, trouble, and expense of buying separate components and assembling them on the job. Functional Devices also offers WiFi, Zigbee, AIC, and EnOcean WIRELESS Network Compatible Devices that can act singly as a (LCS) load control switch or as part of a larger network.

Weights & Dimensions

  • Width 4 in
  • Length 4 in
  • Height 1.8 in
  • Wire Size 16 in

Product Details

  • Operating Temperature -30° To 140°F
  • Humidity Range 5 To 95 Percent (Noncondensing)
  • Voltage 24VAC/DC/208-277VAC V
  • Expected Relay Life 10 Million Cycles Minimum Mechanical
  • Description BacNet Enclosed Relay
  • Number of Relays 1
  • Amperage 20 A
  • Includes Digital Input
  • Wire Rating 600V
  • Brand RIB
  • Manufacturers Part Number RIBTW2402B-BC
  • Contact Type SPDT

Warranty

  • Warranty 1 yr

Compliance & Certifications

  • Certifications UL Listed
