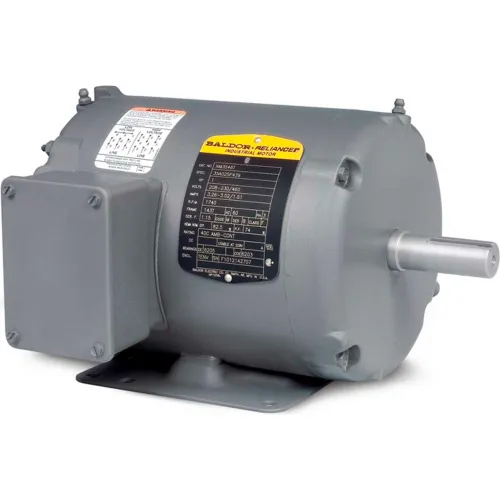

Baldor-Reliance Motor, .33 AIR OVERHP,1725RPM,3PH,60HZ,48,3410M

Features:
  • Locked drive end bearing construction
  • Bearings sized for larger overhung loads for fan on shaft applications
  • Leads 36
Typical Applications:
Motors are designed for In the Airstream and fan on shaft applications.

Weights & Dimensions

  • Width 11.125 in
  • Shaft Length 0.5 in
  • Length 9.63 in
  • Height 11.125 in
  • Drive End Bearing Size 6203
  • Shaft Diameter 0.5 in
  • Frame Size 48
  • Opposite End Bearing Size 6203
  • Length Less Shaft 14 in
  • Weight 18 lbs

Product Details

  • Service Factor 1
  • Enclosure Type Totally Enclosed
  • Horsepower 1/3 HP
  • Is_Motor Yes
  • Duty Continuous
  • Phase 3
  • Enclosure TEAO
  • Full Load Efficiency 68
  • Brand Baldor-Reliance
  • Bearing Type Ball
  • Full Load Amps 1.7/.85 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1725 rpm
  • Thermal Protection None
  • Hertz 60 Hz
  • Manufacturers Part Number AOM3458
  • Mounting Location Rigid
  • Number of Speeds 1
  • Rotation CCW/CW °
  • Poles 4
  • Ambient Temperature 40 °C
  • Drive End Flange Standard
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 230/460 V
  • Frame 48
  • Rated RPM 1725

Compliance & Certifications

  • Certifications CSA; UR
