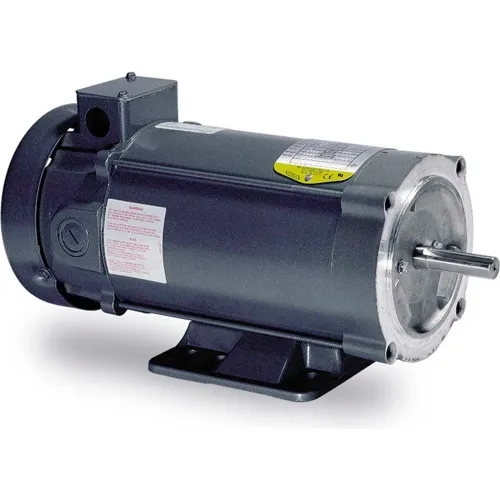

Baldor-Reliance Motor CDP3326, .5HP, 1750RPM, DC, 56C, 3336P, TENV, F1

Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox. Features Metric Flange or C-Face per IEC Standards Bolt on non-metric base Class F insulation Tach adaptable except type 135S 20:1 constant torque speed range Type 135S and 3300P motors are TENV, all others are TEFC Application(s) SCR Drive Motors for replacement on machinery requiring ...

Baldor-Reliance Motor, .18/.25HP,1750RPM,DC,D71D,3320P,TENV,F2 Features: Metric Flange or C-Face per IEC Standards Bolt on non-metric base Class F insulation Tach adaptable except type 135S 20:1 constant torque speed range Type 135S and 3300P motors are TENV, all others are TEFC Typical Applications: SCR Drive Motors for replacement on machinery requiring metirc mounting dimensions.

Baldor-Reliance Motor, .25HP,1800RPM,DC,56C,3416P,TENV,F1 Features: NEMA C-face Class F insulation Double sealed ball bearings Top-mounted terminal studs Not tach adaptable 1/4 - 1/2 Hp are TENV 1 Hp are TEFC Typical Applications: Battery operation for portable pumps, fans, augers, winches and lifts.

Baldor-Reliance Motor, 2HP,1750RPM,DC,213C,3646D,TEFC,F1,N Features: TEFC enclosure Shunt wound Class F insulation Designed for use with NEMA TYPE K SCR control 20:1 constant torque speed range (Except where noted) NEMA C-face and removable base (except on explosion proof models) Base welded on type 3513D only NEMA 182 and larger have a thermostat (normally closed contracts) on the field winding No dual mounting base holes on 35D, 75D or 91D type Typical Applications: Conveyors, printing, textile equipment, machine tools and other equipment requiring variable speeds with constant torque.

Baldor-Reliance DC Metric Motor, VP3428-14, 0.5 HP, RPM, TEFC, D71C Frame Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox. Features Metric Flange or C-Face per IEC Standards Bolt on non-metric base Class F insulation Tach adaptable except type 135S 20:1 constant torque speed range Type 135S and 3300P motors are TENV, all others are ...
