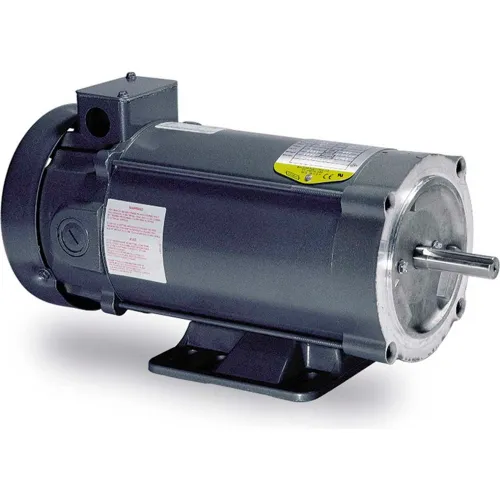

Baldor-Reliance Motor CDP3445, 1HP, 1750RPM, DC, 56C, 3435P, TEFC, F1

Baldor-Reliance Motor CDP3445, 1HP, 1750RPM, DC, 56C, 3435P, TEFC, F1

Item #: WBB388717

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,055.00 up to 38% OFF

Price: $1,279.00

$213.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance General Purpose Motor, CDP3440, 0.75 HP, 1750 RPM, TEFC, 56C Frame

Baldor-Reliance General Purpose Motor, CDP3440, 0.75 HP, 1750 RPM, TEFC, 56C Frame

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, 1HP,1750RPM,DC,56C,3435P,TEFC,F1

Features:
  • NEMA C-face with removable base
  • Tach adaptable
  • Class F insulation
  • Double sealed ball bearings
  • UL and CSA recognized
  • 3300P motors are TENV,all others are TEFC
  • No dual mounting base holes on 33P type
Typical Applications:
Conveyors, mixers,packaging machinery and other applications requiring variable speed and constant torque.

Weights & Dimensions

  • Dimension C 15.46 in
  • Frame Size 56C
  • Base RG
  • Weight 44

Product Details

  • Baldor Motor Type 3435P
  • Mounting Location Rigid
  • Nameplate RPM 1750 rpm
  • Ambient Temperature 40 °C
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • ODE Bearing 6203
  • Frame 56C
  • Horsepower 1 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TEFC
  • Armature Voltage 90 V
  • Field Voltage 90 V
  • Brand Baldor-Reliance
  • DE Bearing 6203
  • Motor RPM 60 Hertz 1750 rpm

Compliance & Certifications

  • Electrical Specification Number 34WG3675
  • Mechanical Specification Number 34LY5990
  • Specification Number 34-5990-3675
