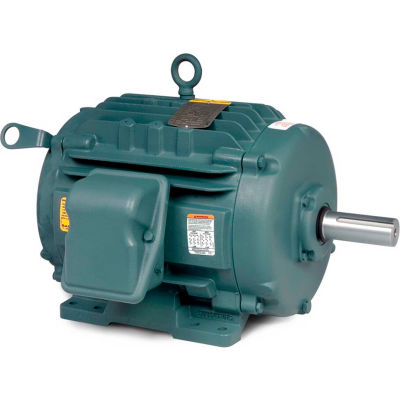

Baldor-Reliance Motor, 25HP,1760RPM,3PH,60HZ,284T,0956M,TEAO,F1
Features:
For use in the airstream on cooling towers.
Features:
- 1.15 service factor
- Corrosion resistant expoxy finish
- Double sealed bearings
- Inpro/Seal® labyrinth
- Class F insulation
- Moisture resistant copper windings
- Double dipped and baked
- Stainless steel nameplates
For use in the airstream on cooling towers.
Weights & Dimensions
- Width 18 in
- Shaft Length 1.375 in
- Length 25.78 in
- Height 18 in
- Drive End Bearing Size 6309
- Shaft Diameter 1.875 in
- Frame Size 284T
- Opposite End Bearing Size 6208
- Length Less Shaft 28.5 in
- Weight 343 lbs
Product Details
- Service Factor 1.15
- Enclosure Type Totally Enclosed
- Horsepower 25 HP
- Is_Motor Yes
- Duty CONT
- Phase 3
- Enclosure TEAO
- Full Load Efficiency 92.4
- Brand Baldor-Reliance
- Bearing Type Sealed
- Full Load Amps 58/29 FLA
- Design Code B
- Motor RPM 60 Hertz 1760 rpm
- Thermal Protection None
- Hertz 60 Hz
- Manufacturers Part Number CTM4103T
- Mounting Location Rigid
- Number of Speeds 1
- Rotation CCW/CW °
- Poles 4
- Ambient Temperature 40 °C
- Drive End Flange Standard
- Insulation Class F
- RPM Range 1701-1800 rpm
- Voltage 230/460 V
- Rated RPM 1760
- Frame 284T
Compliance & Certifications
- Certifications CSA; UR
