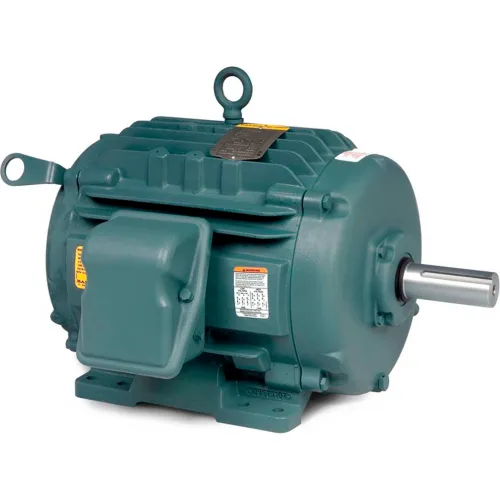

Baldor-Reliance Motor CTM4104T, 30HP, 1760RPM, 3PH, 60HZ, 286T, 0964M, TEAO, F1

Baldor-Reliance Motor CTM4104T, 30HP, 1760RPM, 3PH, 60HZ, 286T, 0964M, TEAO, F1

Item #: WBB388523

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$6,603.00 up to 39% OFF

Price: $4,024.00

$670.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor ECTM2334T, 20HP, 1765RPM, 3PH, 60HZ, 256T, 0952M, TEAO, F1

Baldor-Reliance Motor ECTM2334T, 20HP, 1765RPM, 3PH, 60HZ, 256T, 0952M, TEAO, F1

Baldor-Reliance Motor CTM3665T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 0638M, TEAO, F1

Baldor-Reliance Motor CTM3665T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 0638M, TEAO, F1

Baldor-Reliance Motor CTM1762T, 20HP, 1770RPM, 3PH, 60HZ, 256T, TEFC, FOOT

Baldor-Reliance Motor CTM1762T, 20HP, 1770RPM, 3PH, 60HZ, 256T, TEFC, FOOT

Baldor-Reliance Motor CTM4103T, 25HP, 1760RPM, 3PH, 60HZ, 284T, 0956M, TEAO, F1

Baldor-Reliance Motor CTM4103T, 25HP, 1760RPM, 3PH, 60HZ, 284T, 0956M, TEAO, F1

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Century H655V1, Fan and Blower Motor Three Phase 200-230 Volts 1725/1140RPM 1/2~22 HP

Century H655V1, Fan and Blower Motor Three Phase 200-230 Volts 1725/1140RPM 1/2~22 HP

Century F268, Split Phase Resilient Base Motor 100-115/200-230 Volts 1800 RPM 1/2 HP

Century F268, Split Phase Resilient Base Motor 100-115/200-230 Volts 1800 RPM 1/2 HP

Baldor-Reliance Motor, 30HP,1760RPM,3PH,60HZ,286T,0964M,TEAO,F1

Features:
  • 1.15 service factor
  • Corrosion resistant expoxy finish
  • Double sealed bearings
  • Inpro/Seal® labyrinth
  • Class F insulation
  • Moisture resistant copper windings
  • Double dipped and baked
  • Stainless steel nameplates
Typical Applications:
For use in the airstream on cooling towers.

Weights & Dimensions

  • Width 23.75 in
  • Shaft Length 1.875 in
  • Length 25.78 in
  • Height 23.75 in
  • Drive End Bearing Size 6307
  • Shaft Diameter 1.875 in
  • Frame Size 286T
  • Opposite End Bearing Size 6208
  • Length Less Shaft 31 in
  • Weight 363 lbs

Product Details

  • Service Factor 1.15
  • Enclosure Type Totally Enclosed
  • Horsepower 30 HP
  • Is_Motor Yes
  • Duty CONT
  • Phase 3
  • Enclosure TEAO
  • Full Load Efficiency 92.4
  • Brand Baldor-Reliance
  • Bearing Type Sealed
  • Full Load Amps 72/36 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1760 rpm
  • Thermal Protection None
  • Hertz 60 Hz
  • Manufacturers Part Number CTM4104T
  • Mounting Location Rigid
  • Number of Speeds 1
  • Rotation CCW/CW °
  • Poles 4
  • Ambient Temperature 40 °C
  • Drive End Flange Standard
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 230/460 V
  • Rated RPM 1760
  • Frame 286T

Compliance & Certifications

  • Certifications CSA; UR
