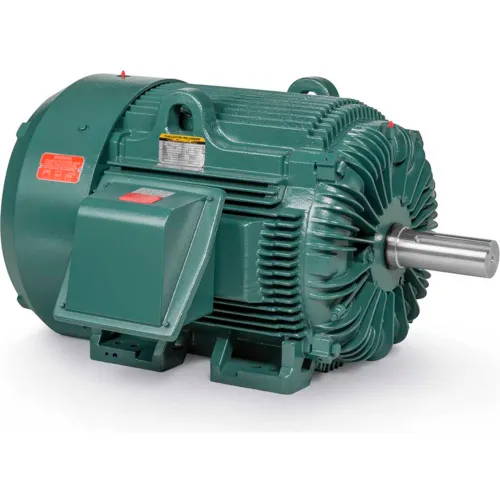

Baldor-Reliance Motor ECP4402T, 100HP, 3560RPM, 3PH, 60HZ, 405TS, TEFC, FOOT

Actual product may differ from image shown

Baldor-Reliance Motor ECP4402T, 100HP, 3560RPM, 3PH, 60HZ, 405TS, TEFC, FOOT

Item #: WBB387734

Not Yet Rated

Free Shipping

Enter zip code for delivery date estimate

Shipping to 10465 change

$14,657.00 up to 27% OFF

Price: $10,769.00

$1,794.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 100HP,3560RPM,3PH,60HZ,405TS,TEFC,FOOT,

Features:
  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant harware
  • Tropicalized
Typical Applications:
Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

  • HORSEPOWER 100
  • ENCLOSURE TEFC
  • FRAME 405TS
  • BRAND Baldor-Reliance
  • MOTOR RPM 60Hz 3565
  • RPM 3565
  • PHASE 3
  • VOLTAGE 230/460
  • HERTZ 60
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6313
  • DUTY Continuous
  • RPM RANGE 3001-3600
  • INSULATION CLASS F
  • POLES 2
  • C-DIMENSION INCHES 35.31
  • DRIVE END FLANGE Standard
  • TYPE P
  • WEIGHT LBS. --
  • MANUFACTURER PART # ECP4402T
  • FL AMPS 220/110
  • POWER-FACTOR-CORRECTION CAPAC 10
  • BRG-DE-AFBMA 65BC03J30X
  • DESIGN CODE B
  • BEARING-DRIVE-END 6313
  • SPEC. NUMBER P40G270
  • SERIAL-NUMBER --
  • EFFICIENCY-1 95.1
  • FL EFFICIENCY 95
  • EFFICIENCY-3 --
  • POWER-FACTOR 89.9
  • is_motor Yes
  • EFFICIENCY-2 94.5
  • KVA-CODE F
  • BRG-ODE-AFBMA 65BC03J30X
