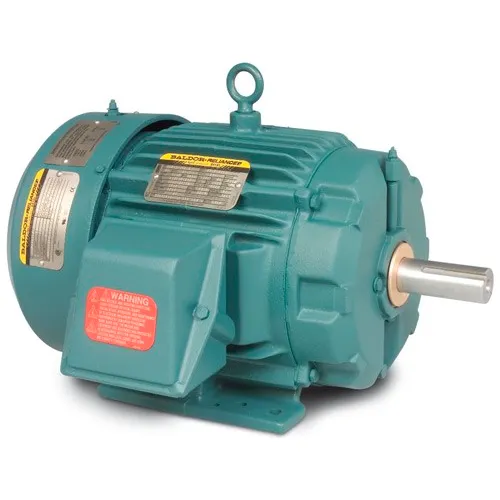

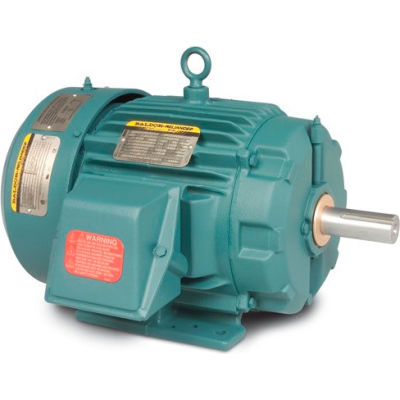

Baldor-Reliance Motor, 40HP,3540RPM,3PH,60HZ,324TS,1256M,TEFC,F
Features:
Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.
Features:
- Built to 841XL design
- Upgraded electrical and mechanical design with NEMA Premium® efficient winding
- Inpro/Seal® VBX (thru 210 frame)
- VBXX bearing isolators on fan and drive end shaft extensions
- Epoxy paint provides IP56 enclosure
- Stainless breather drains
- Proprietary cast iron frames for reduced vibration and noise
- Terminal lugs on motor leads
- 5-year warranty
Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.
Weights & Dimensions
- Dimension C 29.03 in
- Opposite End Bearing Size 6312
- Weight 587 lbs
Product Details
- Power Factor 89
- Mounting Location Rigid
- Bearing Drive End 6312
- Temp Code T3
- RPM 3540 rpm
- Poles 2
- Grease POLYREX EM
- Drive End Flange Standard
- Ambient Temperature 40 °C
- KVA Code H
- Insulation Class F
- RPM Range 3001-3600 rpm
- Voltage 575 V
- Frame 324TS
- Service Factor 1.15
- Efficiency 2 91
- Horsepower 40 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Enclosure TEFC
- Phase 3
- Max KVAR 5.9
- Full Load Efficiency 92.4
- Brand Baldor-Reliance
- Number of Stator Slots 36
- Number of Rotor Bars 28
- Full Load Amps 36 FLA
- Design Code B
- Motor RPM 60 Hertz 3540 rpm
- Hertz 60 Hz
- Manufacturers Part Number ECP84109T-5
