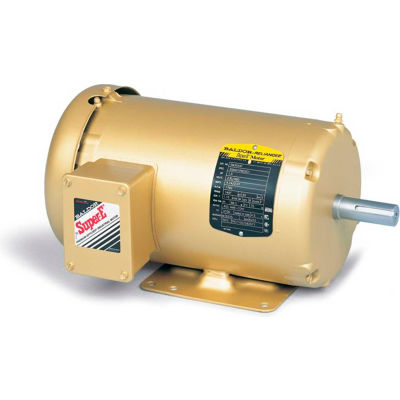

Baldor-Reliance Motor EM3545, 1HP, 3450RPM, 3PH, 60HZ, 56, 3516M, TEFC, F1, N

Actual product may differ from image shown

Baldor-Reliance Motor EM3545, 1HP, 3450RPM, 3PH, 60HZ, 56, 3516M, TEFC, F1, N

Item #: WBB390051

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,056.00 up to 38% OFF

Price: $658.00

$109.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor EM3615T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 3643M, TEFC, F1

Baldor-Reliance Motor EM3615T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 3643M, TEFC, F1

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

US Motors Hostile Duty TEFC, 5 HP, 3-Phase, 1760 RPM Motor, HD5P2E

US Motors Hostile Duty TEFC, 5 HP, 3-Phase, 1760 RPM Motor, HD5P2E

US Motors, ODP, 5 HP, 3-Phase, 1765 RPM Motor, D5P2D

US Motors, ODP, 5 HP, 3-Phase, 1765 RPM Motor, D5P2D

Baldor-Reliance Motor EM3311T,  7.5HP, 1770RPM, 3PH, 60HZ, 213T, 3733M, OPSB, F

Baldor-Reliance Motor EM3311T, 7.5HP, 1770RPM, 3PH, 60HZ, 213T, 3733M, OPSB, F

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, 1HP,3450RPM,3PH,60HZ,56,3516M,TEFC,F1,N

Features:
  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
Typical Applications:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

Weights & Dimensions

  • Dimension C 12.25 in
  • Weight 33

Product Details

  • Power Factor 87
  • Mounting Location Rigid
  • Bearing Drive End 6205
  • Poles 2
  • Drive End Flange Standard
  • Nameplate RPM 3450 rpm
  • Ambient Temperature 40 °C
  • KVA Code K
  • Insulation Class F
  • RPM Range 3001-3600 rpm
  • Bearing Opp Drive End 6203
  • Voltage 230/460 V
  • Frame 56
  • Service Factor 1.25
  • Horsepower 1 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 3
  • Enclosure TEFC
  • Full Load Efficiency 77
  • Brand Baldor-Reliance
  • Full Load Amps 2.8/1.4 FLA
  • Design Code B
  • Motor RPM 60 Hertz 3450 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number EM3545
