Features:
- Ball bearings
- Suitable for mounting any position
- Heavy gauge steel and cast iron frames
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

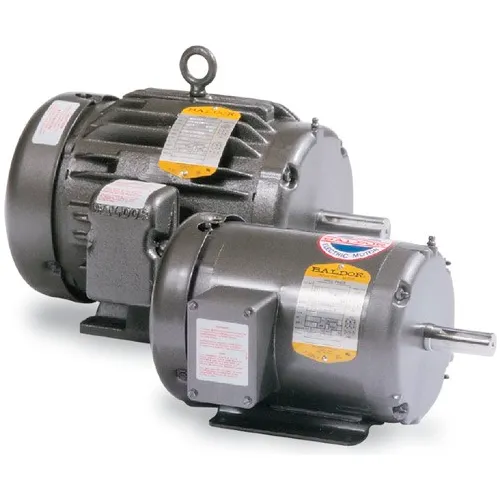

Baldor-Reliance Motor EM3714T, 10HP, 1770RPM, 3PH, 60HZ, 215T, 3752M, TEFC, F1
Write a Review
|
Questions & Answers (0)
Product Description
Baldor-Reliance Motor, 10HP,1770RPM,3PH,60HZ,215T,3752M,TEFC,F1
Features:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.
Features:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.
PRICE
$1,705.00
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 158 |
| Dimension C | 20.52 in |
Product Details
| Power Factor | 85 |
| Bearing Opp Drive End | 6206 |
| Drive End Flange | Standard |
| KVA Code | K |
| Motor RPM 60 Hertz | 1770 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | EM3714T |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Bearing Drive End | 6307 |
| Brand | Baldor-Reliance |
| Insulation Class | F |
| Horsepower | 10 HP |
| Frame | 215T |
| Hertz | 60 Hz |
| Design Code | A |
| Enclosure Type | Totally Enclosed |
| Voltage | 208-230/460 V |
| Full Load Efficiency | 91.7 |
| Nameplate RPM | 1770 rpm |
| Full Load Amps | 25.4-24/12 FLA |
| Poles | 4 |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
Compliance & Certifications
| DOE Code | 010A |
