Features:
- Ball bearings
- Suitable for mounting any position
- Heavy gauge steel and cast iron frames
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

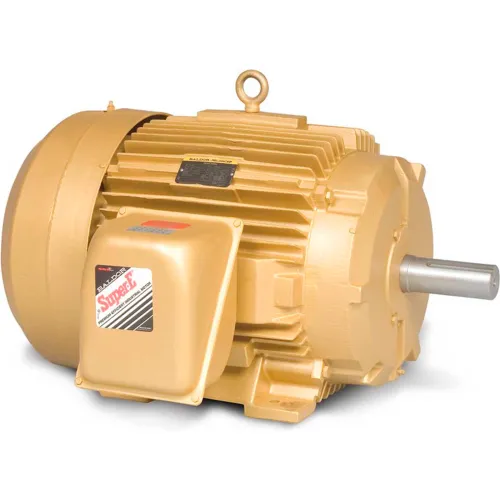

Baldor-Reliance Motor EM4400T, 100HP, 1785RPM, 3PH, 60HZ, 405T, TEFC, FOOT
Write a Review
|
Questions & Answers (0)
Product Description
Baldor-Reliance Motor, 100HP,1785RPM,3PH,60HZ,405T,TEFC,FOOT,
Features:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.
Features:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.
PRICE
$15,239.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Dimension C | 37.22 in |
Product Details
| Power Factor | 87 |
| Bearing Opp Drive End | 80BC03J30X |
| Drive End Flange | Standard |
| KVA Code | G |
| Motor RPM 60 Hertz | 1785 rpm |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | EM4400T |
| Enclosure | TEFC |
| Efficiency 2 | 95 |
| Service Factor | 1.15 |
| Max KVAR | 18 |
| Bearing Drive End | 80BC03J30X |
| Brand | Baldor-Reliance |
| Insulation Class | F |
| Horsepower | 100 HP |
| Frame | 405T |
| Hertz | 60 Hz |
| Design Code | B |
| Enclosure Type | Totally Enclosed |
| Voltage | 230/460 V |
| Full Load Efficiency | 95.4 |
| Nameplate RPM | 1785 rpm |
| Full Load Amps | 224/112 FLA |
| Duty | Continuous |
| Poles | 4 |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
