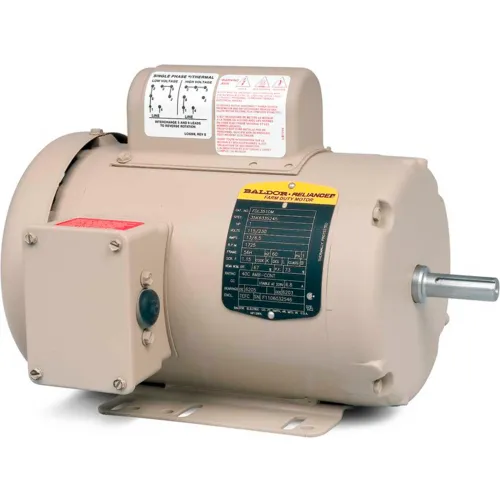

Actual product may differ from image shown
$871.00 up to 38% OFF
Price: $543.00
$90.50/mo
suggested payments with 6 month special financing OR Save 5%on Purchase.
Customers Also Viewed
Baldor-Reliance Motor, .5HP,1725RPM,1PH,60HZ,56,3421L,TEFC,F1,N
Features:
Wide variety of agri-duty and industrial applications.
Features:
- Ball bearings, lubricated with high temperature moisture-resistant grease
- Condensation drains
- Gasketed cast conduit boxed
- Farm duty epoxy paint for protection from harsh environments
- 1.00 Service Factor
Wide variety of agri-duty and industrial applications.
Weights & Dimensions
- Dimension C 11.97 in
- Opposite End Bearing Size 6203
- Weight 28
Product Details
- Power Factor 66
- Mounting Location Rigid
- Bearing Drive End 6203
- RPM 1725 rpm
- Poles 4
- Drive End Flange Standard
- Ambient Temperature 40 °C
- KVA Code J
- Insulation Class B
- RPM Range 1701-1800 rpm
- Voltage 115/230 V
- Frame 56
- Service Factor 1.25
- Horsepower 1/2 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Enclosure TEFC
- Phase 1
- Amps @ 208V 4.3 A
- Full Load Efficiency 68
- Brand Baldor-Reliance
- Full Load Amps 7.4/3.7 FLA
- Design Code N
- Motor RPM 60 Hertz 1725 rpm
- Hertz 60 Hz
- Manufacturers Part Number FDL3504M
