Baldor-Reliance Motor, .33HP,1725RPM,3PH,60HZ,56C,3513M,TENV,F1
Features:
Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.
Features:
- Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
- Meets NEMA MG 1, Part 31
Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.
Weights & Dimensions
- Dimension C 13.84 in
- Opposite End Bearing Size 6203
- Weight 29 lbs
Product Details
- Mounting Location Rigid
- Bearing Drive End 6205
- RPM 1725 rpm
- Poles 4
- Drive End Flange C-Face
- Ambient Temperature 40 °C
- Insulation Class H
- RPM Range 1701-1800 rpm
- Voltage 230/460 V
- Frame 56C
- Service Factor 1
- Horsepower 1/3 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Phase 3
- Enclosure TENV
- Slip Hertz 2.5 Hz
- Magnetizing Current 1/.5 A
- Full Load Efficiency 76
- Brand Baldor-Reliance
- Full Load Amps 1.2/.6 FLA
- Design Code B
- Motor RPM 60 Hertz 1725 rpm
- Hertz 60 Hz
- Max RPM 6000 rpm
- Rotor-Inertia 0.0771
Customer Review
Product Q & A
There are no questions for this product.

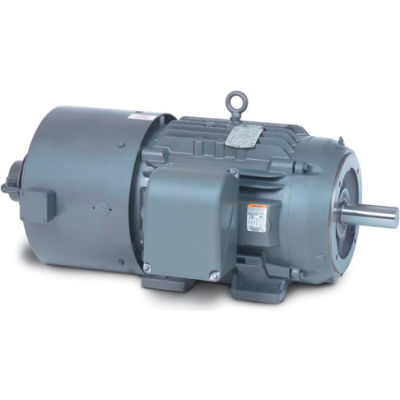

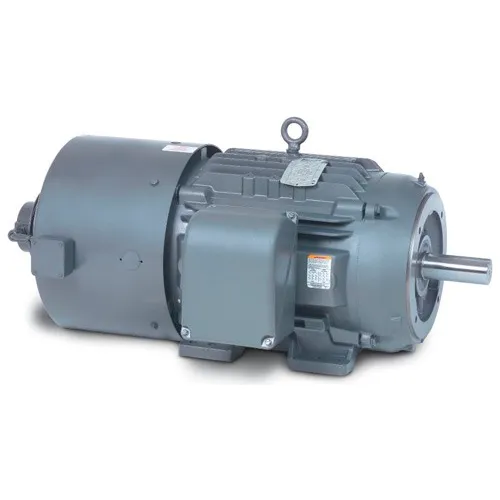

Baldor-Reliance Motor IDNM3534, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3513M, TENV, F1
