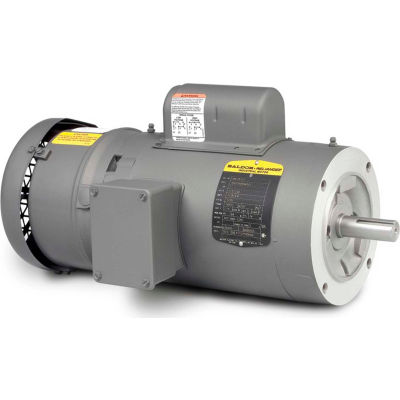

Baldor-Reliance Motor KBL3406, .33HP, 1725RPM, 1PH, 60HZ, 56C, 3414L, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor KBL3406, .33HP, 1725RPM, 1PH, 60HZ, 56C, 3414L, TEFC, F1

Item #: WBB388972

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,714.00 up to 38% OFF

Price: $1,066.00

$177.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor VEBM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F1

Baldor-Reliance Motor VEBM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F1

Baldor-Reliance Motor VEBM3546, 1HP, 1765RPM, 3PH, 60HZ, 56C, 3524M, TEFC, F1, B

Baldor-Reliance Motor VEBM3546, 1HP, 1765RPM, 3PH, 60HZ, 56C, 3524M, TEFC, F1, B

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, .33HP,1725RPM,1PH,60HZ,56C,3414L,TEFC,F1

Features:
  • Spring set brake
  • Power off operation manual release
  • Resets automatically
  • Brakes internally connected to motor on 215T and smaller
Typical Applications:
Machine tools, conveyors, door operators, speed reducers, any application requiring quick stop and hold.

Weights & Dimensions

  • Dimension C 15.45 in
  • Opposite End Bearing Size 6203
  • Weight 28 lbs

Product Details

  • Power Factor 60
  • Mounting Location C-Face Footless
  • Bearing Drive End 6203
  • Brake Rating 3
  • RPM 1725 rpm
  • Poles 4
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • KVA Code L
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Voltage 115/230 V
  • Frame 56C
  • Service Factor 1.35
  • Horsepower 1/3 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 1
  • Enclosure TEFC
  • Amps @ 208V 3.6 A
  • Full Load Efficiency 60
  • Brand Baldor-Reliance
  • Full Load Amps 6/3 FLA
  • Design Code N
  • Motor RPM 60 Hertz 1725 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number KBL3406
