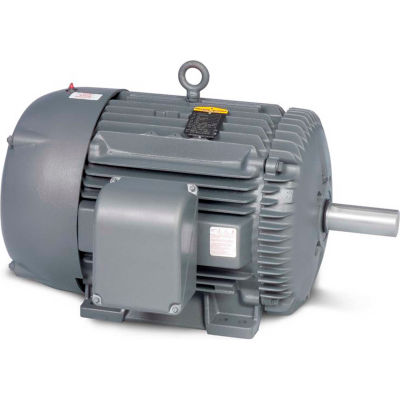

Baldor-Reliance Motor M1506T, 2/1HP, 1725/850RPM, 3PH, 60HZ, 184T, 3628M, TE

Baldor-Reliance Motor M1506T, 2/1HP, 1725/850RPM, 3PH, 60HZ, 184T, 3628M, TE

Item #: WBB389665

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,763.00 up to 39% OFF

Price: $1,685.00

$280.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor M1555T, 1.5/.38HP, 1725/850RPM, 3PH, 60HZ, 145T, 3528

Baldor-Reliance Motor M1555T, 1.5/.38HP, 1725/850RPM, 3PH, 60HZ, 145T, 3528

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size A - Made In USA

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size A - Made In USA

Baldor-Reliance Motor M1204T, 1/.25HP, 1725/850RPM, 3PH, 60HZ, 143T, 3520M

Baldor-Reliance Motor M1204T, 1/.25HP, 1725/850RPM, 3PH, 60HZ, 143T, 3520M

Baldor-Reliance Motor M1725T, 7.5/3.3HP, 1760/1160RPM, 3PH, 60HZ, 254T, 092

Baldor-Reliance Motor M1725T, 7.5/3.3HP, 1760/1160RPM, 3PH, 60HZ, 254T, 092

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size A - Made In USA

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size A - Made In USA

Baldor-Reliance Motor, 2/1HP,1725/850RPM,3PH,60HZ,184T,3628M,TE

Features:
  • Lifting eye bold mounted at top center 215T frame and larger for easy handling
  • Copper windings
  • Dynamically balanced rotors
Typical Applications:
Fans, blowers, machine tools, hoists, conveyors, pumps.

Weights & Dimensions

  • Dimension C 16.54 in
  • Opposite End Bearing Size 6205
  • Weight 65

Product Details

  • Mounting Location Rigid
  • Bearing Drive End 6206
  • RPM 1725/850 rpm
  • Poles 4; 8
  • Drive End Flange Standard
  • Ambient Temperature 40 °C
  • KVA Code D
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Voltage 208-230 V
  • Frame 184T
  • Service Factor 1.15
  • Horsepower 2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TEFC
  • Phase 3
  • Brand Baldor-Reliance
  • Full Load Amps 5.5/5.2 FLA
  • Hertz 60 Hz
