Baldor-Reliance Motor, 1.5/.38HP,1725/850RPM,3PH,60HZ,145T,3528
Features:
Fans, blowers, machine tools, hoists, conveyors, pumps.
Features:
- Lifting eye bold mounted at top center 215T frame and larger for easy handling
- Copper windings
- Dynamically balanced rotors
Fans, blowers, machine tools, hoists, conveyors, pumps.
Weights & Dimensions
- Dimension C 13.31 in
- Opposite End Bearing Size 6203
- Weight 38
Product Details
- Mounting Location Rigid
- Bearing Drive End 6205
- RPM 1725/850 rpm
- Poles 4; 8
- Drive End Flange Standard
- Ambient Temperature 40 °C
- KVA Code F
- Insulation Class B
- RPM Range 1701-1800 rpm
- Voltage 208-230 V
- Frame 145T
- Service Factor 1.15
- Horsepower 1-1/2 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Phase 3
- Enclosure TEFC
- Brand Baldor-Reliance
- Full Load Amps 4.8/2.4 FLA
- Design Code B
- Hertz 60 Hz
Customer Review
Product Q & A
There are no questions for this product.

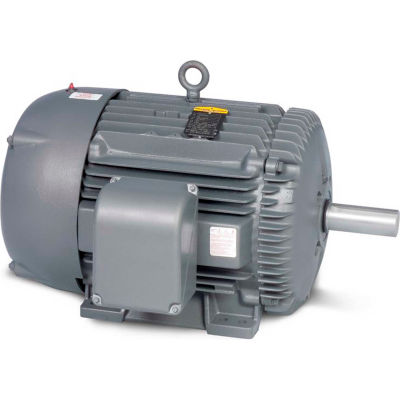

Baldor-Reliance Motor M1555T, 1.5/.38HP, 1725/850RPM, 3PH, 60HZ, 145T, 3528
