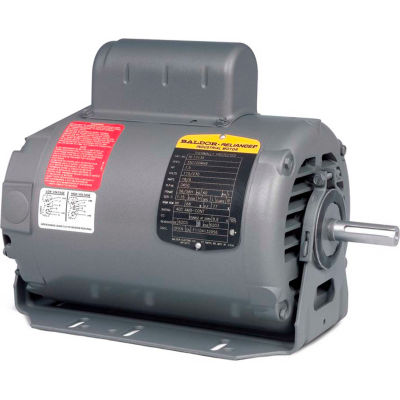

Baldor-Reliance Single Phase HVAC Motor
This OPEN enclosure, 0.33HP, 1725RPM, 277V unit has heavy guage steel base, ball bearings and dynamically balanced rotors for reduced vibration and quiet operation. Suitable for mounting in any position.
This OPEN enclosure, 0.33HP, 1725RPM, 277V unit has heavy guage steel base, ball bearings and dynamically balanced rotors for reduced vibration and quiet operation. Suitable for mounting in any position.
Weights & Dimensions
- Width 11.125 in
- Length 10.97 in
- Height 10 in
- Drive End Bearing Size 6206
- Shaft Diameter 0.625 in
- Frame Size 56Z
- Opposite End Bearing Size 6203
- Length Less Shaft 18.5 in
- Weight 29 lbs
Product Details
- Service Factor 1.35
- Enclosure Type Open/Drip Proof
- Horsepower 1/3 HP
- Is_Motor Yes
- Duty CONT
- Phase 1
- Enclosure Open
- Full Load Efficiency 60
- Brand Baldor-Reliance
- Bearing Type Ball
- Full Load Amps 2.5 FLA
- Design Code N
- Motor RPM 60 Hertz 1725 rpm
- Thermal Protection Automatic
- Hertz 60 Hz
- Manufacturers Part Number RL1301A277
- Mounting Location Resilient
- Number of Speeds 1
- Rotation CCW/CW °
- Poles 4
- Ambient Temperature 40 °C
- Drive End Flange Standard
- Insulation Class B
- RPM Range 1701-1800 rpm
- Voltage 277 V
- Frame 56
- Rated RPM 1725
Compliance & Certifications
- Certifications CSA; UR
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: Anonymous
Date: February 19, 2016
Product Q & A
There are no questions for this product.

Baldor-Reliance Electric Motors RL1301A277, .33HP, 1725RPM, 1PH, 60HZ, 56, 3414L, OPEN
$456.95
