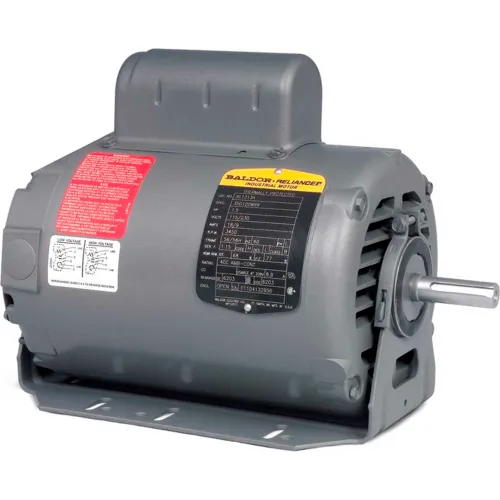

Baldor-Reliance Motor RL1307A, .75HP, 1725RPM, 1PH, 60HZ, 56H, 3428L, OPEN, F1

Baldor-Reliance Motor RL1307A, .75HP, 1725RPM, 1PH, 60HZ, 56H, 3428L, OPEN, F1

Item #: WBB390722

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$876.00 up to 38% OFF

Price: $545.00

$90.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor RL1304A277, .5HP, 1725RPM, 1PH, 60HZ, 56, 3418L, OPEN, F1, N

Baldor-Reliance Motor RL1304A277, .5HP, 1725RPM, 1PH, 60HZ, 56, 3418L, OPEN, F1, N

Marathon Motors, C216, 5KC36LN1X, 1/3HP, 1725/1425RPM, 115/208-230V, 1PH, 56 FR, DP

Marathon Motors, C216, 5KC36LN1X, 1/3HP, 1725/1425RPM, 115/208-230V, 1PH, 56 FR, DP

Century RS1051A, Capacitor Start Resilient Base Motor - 115/230 Volts 1725 RPM

Century RS1051A, Capacitor Start Resilient Base Motor - 115/230 Volts 1725 RPM

Baldor-Reliance Motor RL1310A, 1HP, 1725RPM, 1PH, 60HZ, 56/56H, 3520L, OPEN, F

Baldor-Reliance Motor RL1310A, 1HP, 1725RPM, 1PH, 60HZ, 56/56H, 3520L, OPEN, F

Baldor-Reliance Motor RL1324A, .75HP, 1725RPM, 1PH, 60HZ, 56, 3424L, OPEN, F1

Baldor-Reliance Motor RL1324A, .75HP, 1725RPM, 1PH, 60HZ, 56, 3424L, OPEN, F1

Marathon Motors HVAC Motor, G141, 056T17D5346, 3/4HP, 1800RPM, 208-230/460V, 3 PH, 56 FR

Marathon Motors HVAC Motor, G141, 056T17D5346, 3/4HP, 1800RPM, 208-230/460V, 3 PH, 56 FR

Marathon Motors HVAC Motor, G140, 056T17D5345, 1/2HP, 1800RPM, 208-230/460V, 3 PH, 56 FR

Marathon Motors HVAC Motor, G140, 056T17D5345, 1/2HP, 1800RPM, 208-230/460V, 3 PH, 56 FR

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Century H655V1, Fan and Blower Motor Three Phase 200-230 Volts 1725/1140RPM 1/2~22 HP

Century H655V1, Fan and Blower Motor Three Phase 200-230 Volts 1725/1140RPM 1/2~22 HP

Century F268, Split Phase Resilient Base Motor 100-115/200-230 Volts 1800 RPM 1/2 HP

Century F268, Split Phase Resilient Base Motor 100-115/200-230 Volts 1800 RPM 1/2 HP

Baldor-Reliance Single Phase HVAC Motor

This OPEN enclosure, 0.75HP, 1725RPM, 115/230V unit has heavy guage steel base, ball bearings and dynamically balanced rotors for reduced vibration and quiet operation. Suitable for mounting in any position.

Weights & Dimensions

  • Width 11.125 in
  • Length 12.96 in
  • Height 11.375 in
  • Shaft Diameter 0.625 in
  • Frame Size 48Z
  • Opposite End Bearing Size 6203
  • Length Less Shaft 14 in
  • Weight 24 lbs

Product Details

  • Enclosure Type Open/Drip Proof
  • Horsepower 3/4 HP
  • Is_Motor Yes
  • Duty CONT
  • Phase 1
  • Enclosure OPEN
  • Full Load Efficiency 68
  • Brand Baldor-Reliance
  • Bearing Type Ball
  • Full Load Amps 10.2/5.1 FLA
  • Design Code N
  • Motor RPM 60 Hertz 1725 rpm
  • Thermal Protection Automatic
  • Hertz 60 Hz
  • Manufacturers Part Number RL1307A
  • Mounting Location Resilient
  • Number of Speeds 1
  • Rotation CCW/CW °
  • Poles 4
  • Ambient Temperature 40 °C
  • Drive End Flange Standard
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Voltage 115/230 V
  • Rated RPM 1725
  • Frame 56H
  • Service Factor 1.25

Compliance & Certifications

  • Certifications CSA; UR
